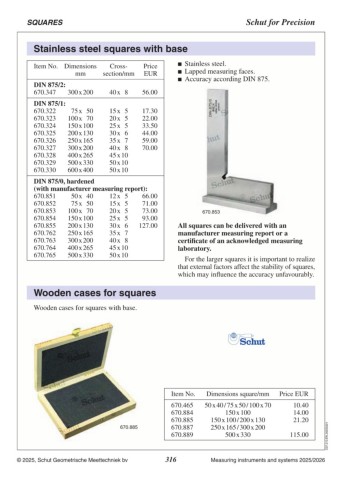

P. 316
SQUARES Schut for Precision
Stainless steel squares with base
Item No. Dimensions Cross- Price Stainless steel.
mm section/mm EUR Lapped measuring faces.
Accuracy according DIN 875.
DIN 875/2: 56.00
670.347 300 x 200 40 x 8 670.853
DIN 875/1: 17.30 All squares can be delivered with an
670.322 75 x 50 15 x 5 22.00 manufacturer measuring report or a
670.323 100 x 70 20 x 5 33.50 certificate of an acknowledged measuring
670.324 150 x 100 25 x 5 44.00 laboratory.
670.325 200 x 130 30 x 6 59.00
670.326 250 x 165 35 x 7 70.00 For the larger squares it is important to realize
670.327 300 x 200 40 x 8 271.00 that external factors affect the stability of squares,
670.328 400 x 265 45 x 10 324.00 which may influence the accuracy unfavourably.
670.329 500 x 330 50 x 10 660.00
670.330 600 x 400 50 x 10
DIN 875/0, hardened
(with manufacturer measuring report):
670.851 50 x 40 12 x 5 66.00
670.852 75 x 50 15 x 5 71.00
670.853 100 x 70 20 x 5 73.00
670.854 150 x 100 25 x 5 93.00
670.855 200 x 130 30 x 6 127.00
670.762 250 x 165 35 x 7
670.763 300 x 200 40 x 8
670.764 400 x 265 45 x 10 567.00
670.765 500 x 330 50 x 10 640.00
Wooden cases for squares
Wooden cases for squares with base.
670.885 Item No. Dimensions square/mm Price EUR C07.213.EN.20240626
© 2024, Schut Geometrische Meettechniek bv 670.465 50 x 40 / 75 x 50 / 100 x 70 10.40
670.884 14.00
670.885 150 x 100 21.20
670.887 150 x 100 / 200 x 130 54.00
670.889 250 x 165 / 300 x 200 115.00
500 x 330
316 Measuring instruments and systems 2023/2024
