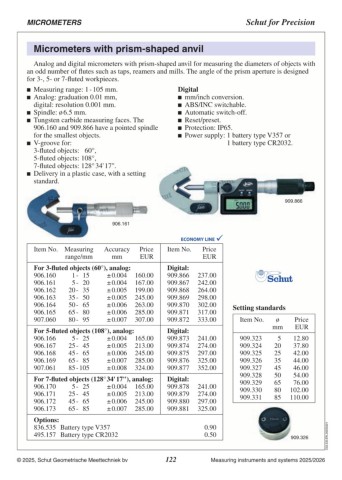

Page 122 - Schut Catalog
P. 122

MICROMETERS                                                        Schut for Precision

Micrometers with prism-shaped anvil

  Analog and digital micrometers with prism-shaped anvil for measuring the diameters of objects with
an odd number of flutes such as taps, reamers and mills. The angle of the prism aperture is designed
for 3‑, 5‑ or 7‑fluted workpieces.

	 Measuring range: 1 - 105 mm.                     Digital
	 Analog: graduation 0.01 mm, 	                    	 mm/inch conversion.
                                                    	 ABS/INC switchable.
  digital: resolution 0.001 mm.                     	 Automatic switch-off.
	 Spindle: ø 6.5 mm.                               	 Reset/preset.
	 Tungsten carbide measuring faces. The            	 Protection: IP65.
                                                    	 Power supply: 1 battery type V357 or
  906.160 and 909.866 have a pointed spindle
  for the smallest objects.                           	 1 battery type CR2032.
	 V‑groove for:
  3‑fluted objects:   60°,
  5‑fluted objects: 108°,
  7‑fluted objects: 128° 34' 17".
	 Delivery in a plastic case, with a setting
  standard.

                                                                                  909.866

                           906.161

Item No. Measuring 	 Accuracy 	 Price          Item No. Price
            range/mm       mm EUR                             EUR

For 3‑fluted objects (60°), analog:            Digital:  237.00    Setting standards
906.160 	 1	-	 15 	 ± 0.004 160.00             909.866   242.00
906.161 	 5	-	 20 	 ± 0.004 167.00             909.867   264.00    Item No. ø 	 Price
906.162 	 20	-	 35 	 ± 0.005 199.00            909.868   298.00                  mm EUR
906.163 	 35	-	 50 	 ± 0.005 245.00            909.869   302.00
906.164 	 50	-	 65 	 ± 0.006 263.00            909.870   317.00
906.165 	 65	-	 80 	 ± 0.006 285.00            909.871   333.00
907.060 	 80	-	 95 	 ± 0.007 307.00            909.872

For 5‑fluted objects (108°), analog:           Digital:  241.00    909.323 	   5       12.80
906.166 	 5	-	 25 	 ± 0.004 165.00             909.873   274.00    909.324 	  20       37.80
906.167 	 25	-	 45 	 ± 0.005 213.00            909.874   297.00    909.325 	  25       42.00
906.168 	 45	-	 65 	 ± 0.006 245.00            909.875   325.00    909.326 	  35       44.00
906.169 	 65	-	 85 	 ± 0.007 285.00            909.876   352.00    909.327 	  45       46.00
907.061 	 85	-	105 	 ± 0.008 324.00            909.877             909.328 	  50       54.00
                                                                   909.329 	  65       76.00
For 7‑fluted objects (128° 34' 17"), analog:   Digital:  241.00    909.330 	  80      102.00
906.170 	 5	-	 25 	 ± 0.004 165.00             909.878   274.00    909.331 	  85      110.00
906.171 	 25	-	 45 	 ± 0.005 213.00            909.879   297.00
906.172 	 45	-	 65 	 ± 0.006 245.00            909.880   325.00
906.173 	 65	-	 85 	 ± 0.007 285.00            909.881
Options:

836.535 Battery type V357                                0.90                                         C03.233.EN.20250321
495.157 Battery type CR2032                              0.50
                                                                                      909.326
