P. 74

www.mtsranders.dk                                               MICROMETERS

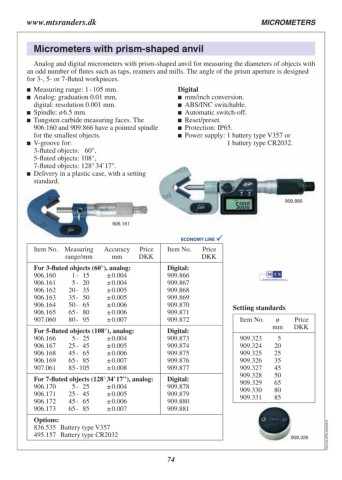

Micrometers with prism-shaped anvil

  Analog and digital micrometers with prism-shaped anvil for measuring the diameters of objects with
an odd number of flutes such as taps, reamers and mills. The angle of the prism aperture is designed
for 3‑, 5‑ or 7‑fluted workpieces.

	 Measuring range: 1 - 105 mm.                    Digital
	 Analog: graduation 0.01 mm, 	                   	 mm/inch conversion.
                                                   	 ABS/INC switchable.
  digital: resolution 0.001 mm.                    	 Automatic switch-off.
	 Spindle: ø 6.5 mm.                              	 Reset/preset.
	 Tungsten carbide measuring faces. The           	 Protection: IP65.
                                                   	 Power supply: 1 battery type V357 or
  906.160 and 909.866 have a pointed spindle
  for the smallest objects.                          	 1 battery type CR2032.
	 V‑groove for:
  3‑fluted objects:   60°,
  5‑fluted objects: 108°,
  7‑fluted objects: 128° 34' 17".
	 Delivery in a plastic case, with a setting
  standard.

                                                                                  909.866

                           906.161

Item No. Measuring 	 Accuracy 	 Price          Item No.  Price
            range/mm       mm DKK                        DKK
                                               Digital:
For 3‑fluted objects (60°), analog:            909.866          Setting standards
906.160 	 1	-	 15 	 ± 0.004                    909.867
906.161 	 5	-	 20 	 ± 0.004                    909.868          Item No. ø 	       Price
906.162 	 20	-	 35 	 ± 0.005                   909.869                        mm   DKK
906.163 	 35	-	 50 	 ± 0.005                   909.870
906.164 	 50	-	 65 	 ± 0.006                   909.871
906.165 	 65	-	 80 	 ± 0.006                   909.872
907.060 	 80	-	 95 	 ± 0.007                   Digital:
                                               909.873
For 5‑fluted objects (108°), analog:           909.874          909.323 	   5
906.166 	 5	-	 25 	 ± 0.004                    909.875          909.324 	  20
906.167 	 25	-	 45 	 ± 0.005                   909.876          909.325 	  25
906.168 	 45	-	 65 	 ± 0.006                   909.877          909.326 	  35
906.169 	 65	-	 85 	 ± 0.007                   Digital:         909.327 	  45
907.061 	 85	-	105 	 ± 0.008                   909.878          909.328 	  50
                                               909.879          909.329 	  65
For 7‑fluted objects (128° 34' 17"), analog:   909.880          909.330 	  80
906.170 	 5	-	 25 	 ± 0.004                    909.881          909.331 	  85
906.171 	 25	-	 45 	 ± 0.005
906.172 	 45	-	 65 	 ± 0.006
906.173 	 65	-	 85 	 ± 0.007
Options:

836.535 Battery type V357                                                                             C03.233.MTS.20250410
495.157 Battery type CR2032
                                                                                   909.326

                                               74
