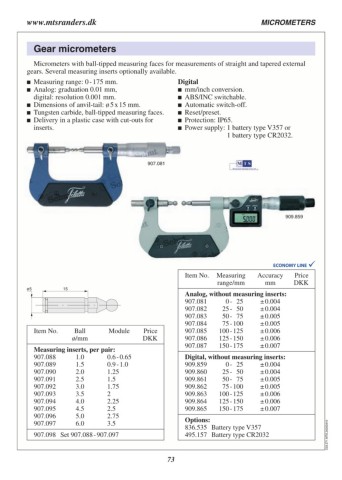

P. 73

www.mtsranders.dk                                                MICROMETERS

Gear micrometers

  Micrometers with ball-tipped measuring faces for measurements of straight and tapered external
gears. Several measuring inserts optionally available.

	 Measuring range: 0 - 175 mm.                        Digital
	 Analog: graduation 0.01 mm, 	                       	 mm/inch conversion.
                                                       	 ABS/INC switchable.
  digital: resolution 0.001 mm.                        	 Automatic switch-off.
	 Dimensions of anvil-tail: ø 5 x 15 mm.              	 Reset/preset.
	 Tungsten carbide, ball-tipped measuring faces.      	 Protection: IP65.
	 Delivery in a plastic case with cut-outs for        	 Power supply: 1 battery type V357 or

  inserts.                                               	 1 battery type CR2032.

                               907.081

                                                                                    909.859

                                                       Item No. Measuring 	 Accuracy 	      Price
                                                       range/mm  mm                         DKK

ø5 15                                                  Analog, without measuring inserts:
                                                       907.081 	 0	-	 25 	 ± 0.004
Item No.   Ball 	  Module      Price                   907.082 	 25	-	 50 	 ± 0.004
          ø/mm                 DKK                     907.083 	 50	-	 75 	 ± 0.005
                                                       907.084 	 75	-	100 	 ± 0.005
Measuring inserts, per pair:                           907.085 	 100	-	125 	 ± 0.006
907.088 	 1.0 	 0.6 - 0.65                             907.086 	 125	-	150 	 ± 0.006
907.089 	 1.5 	 0.9 - 1.0                              907.087 	 150	-	175 	 ± 0.007
907.090 	 2.0 	 1.25
907.091 	 2.5 	 1.5                                    Digital, without measuring inserts:
907.092 	 3.0 	 1.75                                   909.859 	 0	-	 25 	 ± 0.004
907.093 	 3.5 	 2                                      909.860 	 25	-	 50 	 ± 0.004
907.094 	 4.0 	 2.25                                   909.861 	 50	-	 75 	 ± 0.005
907.095 	 4.5 	 2.5                                    909.862 	 75	-	100 	 ± 0.005
907.096 	 5.0 	 2.75                                   909.863 	 100	-	125 	 ± 0.006
907.097 	 6.0 	 3.5                                    909.864 	 125	-	150 	 ± 0.006
                                                       909.865 	 150	-	175 	 ± 0.007

907.098 Set 907.088 - 907.097                          Options:                                    C03.271.MTS.20250410
                                                       836.535 Battery type V357
                                                       495.157 Battery type CR2032

                                                   73
