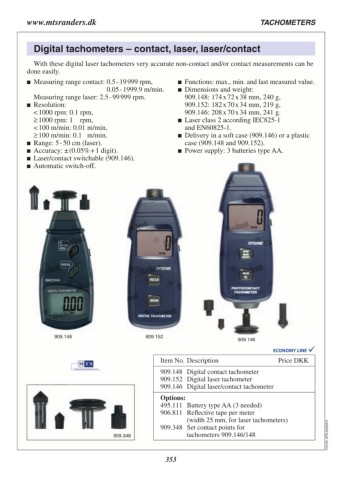

Page 353 - Schut Catalog

www.mtsranders.dk TACHOMETERS

Digital tachometers – contact, laser, laser/contact

With these digital laser tachometers very accurate non-contact and/or contact measurements can be
done easily.

 Measuring range contact: 0.5 - 19 999 rpm,  Functions: max., min. and last measured value.
0.05 - 1999.9 m/min.  Dimensions and weight:
Measuring range laser: 2.5 - 99 999 rpm.
909.148: 174 x 72 x 38 mm, 240 g,
 Resolution: 909.152: 182 x 70 x 34 mm, 219 g,
< 1000 rpm: 0.1 rpm, 909.146: 208 x 70 x 34 mm, 241 g.
≥ 1000 rpm: 1 rpm,  Laser class 2 according IEC825‑1
< 100 m/min: 0.01 m/min, and EN60825‑1.
≥ 100 m/min: 0.1 m/min.  Delivery in a soft case (909.146) or a plastic
case (909.148 and 909.152).
 Range: 5 - 50 cm (laser).  Power supply: 3 batteries type AA.
 Accuracy: ± (0.05% + 1 digit).
 Laser/contact switchable (909.146).
 Automatic switch-off.

909.148 909.152 909.146

Item No. Description Price DKK

909.148 Digital contact tachometer
909.152 Digital laser tachometer
909.146 Digital laser/contact tachometer

909.348 Options: C18.331.MTS.20250410
495.111 Battery type AA (3 needed)
906.811 Reflective tape per meter

(width 25 mm, for laser tachometers)
909.348 Set contact points for

tachometers 909.146/148

353
