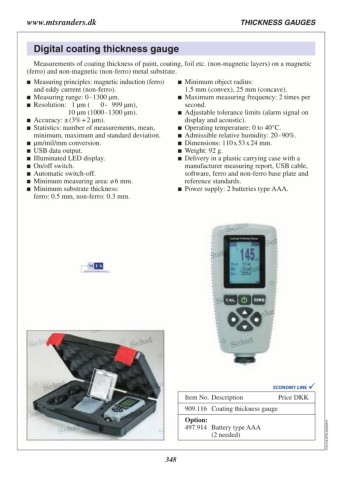

Page 348 - Schut Catalog
P. 348
www.mtsranders.dk THICKNESS GAUGES
Digital coating thickness gauge
Measurements of coating thickness of paint, coating, foil etc. (non-magnetic layers) on a magnetic
(ferro) and non-magnetic (non-ferro) metal substrate.
Measuring principles: magnetic induction (ferro) Minimum object radius:
and eddy current (non-ferro). 1.5 mm (convex), 25 mm (concave).
Measuring range: 0 - 1300 µm. Maximum measuring frequency: 2 times per
Resolution: 1 µm ( 0 - 999 µm), second.
10 µm (1000 - 1300 µm). Adjustable tolerance limits (alarm signal on
Accuracy: ± (3% + 2 µm). display and acoustic).
Statistics: number of measurements, mean,
Operating temperature: 0 to 40°C.
minimum, maximum and standard deviation. Admissible relative humidity: 20 - 90%.
µm/mil/mm conversion. Dimensions: 110 x 53 x 24 mm.
USB data output. Weight: 92 g.
Illuminated LED display. Delivery in a plastic carrying case with a
On/off switch.
Automatic switch-off. manufacturer measuring report, USB cable,
Minimum measuring area: ø 6 mm. software, ferro and non-ferro base plate and
Minimum substrate thickness: reference standards.
Power supply: 2 batteries type AAA.
ferro: 0.5 mm, non-ferro: 0.3 mm.
Item No. Description Price DKK
909.116 Coating thickness gauge
Option: C18.318.MTS.20250410
497.914 Battery type AAA
(2 needed)
