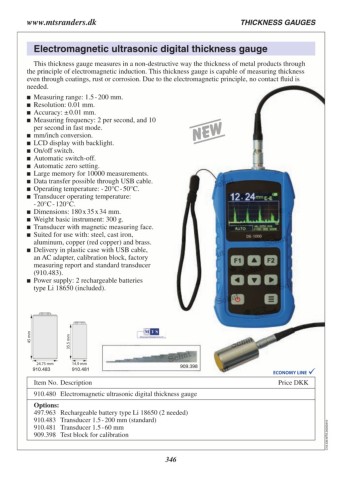

Page 346 - Schut Catalog
P. 346
www.mtsranders.dk THICKNESS GAUGES
Electromagnetic ultrasonic digital thickness gauge
This thickness gauge measures in a non-destructive way the thickness of metal products through
the principle of electromagnetic induction. This thickness gauge is capable of measuring thickness
even through coatings, rust or corrosion. Due to the electromagnetic principle, no contact fluid is
needed.
Measuring range: 1.5 - 200 mm.
Resolution: 0.01 mm.
Accuracy: ± 0.01 mm.
Measuring frequency: 2 per second, and 10
per second in fast mode.
mm/inch conversion.
LCD display with backlight.
On/off switch.
Automatic switch-off.
Automatic zero setting.
Large memory for 10000 measurements.
Data transfer possible through USB cable.
Operating temperature: - 20°C - 50°C.
Transducer operating temperature:
- 20°C - 120°C.
Dimensions: 180 x 35 x 34 mm.
Weight basic instrument: 300 g.
Transducer with magnetic measuring face.
Suited for use with: steel, cast iron,
aluminum, copper (red copper) and brass.
Delivery in plastic case with USB cable,
an AC adapter, calibration block, factory
measuring report and standard transducer
(910.483).
Power supply: 2 rechargeable batteries
type Li 18650 (included).
45 mm24.75 mm14.9 mm 909.398
35.5 mm910.483910.481
C18.330.MTS.20250410
Item No. Description Price DKK
910.480 Electromagnetic ultrasonic digital thickness gauge
Options:
497.963 Rechargeable battery type Li 18650 (2 needed)
910.483 Transducer 1.5 - 200 mm (standard)
910.481 Transducer 1.5 - 60 mm
909.398 Test block for calibration
