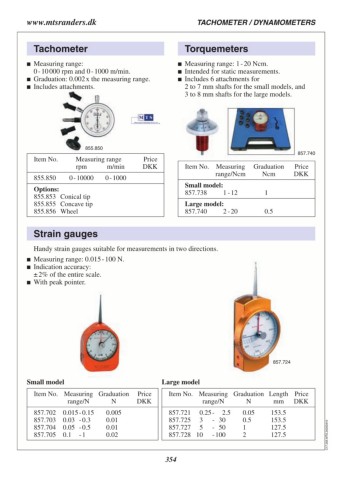

P. 354
www.mtsranders.dk TACHOMETER / DYNAMOMETERS
Tachometer Torquemeters
Measuring range: Measuring range: 1 - 20 Ncm.
0 - 10 000 rpm and 0 - 1000 m/min. Intended for static measurements.
Includes 6 attachments for
Graduation: 0.002 x the measuring range.
Includes attachments. 2 to 7 mm shafts for the small models, and
3 to 8 mm shafts for the large models.
855.850 857.740
Item No. Measuring range Price Item No. Measuring Graduation Price
rpm m/min DKK range/Ncm Ncm DKK
855.850 0 - 10000 0 - 1000 Small model:
857.738 1 - 12 1
Options: Large model:
855.853 Conical tip 857.740 2 - 20 0.5
855.855 Concave tip
855.856 Wheel
Strain gauges
Handy strain gauges suitable for measurements in two directions.
Measuring range: 0.015 - 100 N.
Indication accuracy:
± 2% of the entire scale.
With peak pointer.
857.724
Small model Large model
Item No. Measuring Graduation Price Item No. Measuring Graduation Length Price
range/N N DKK range/N N mm DKK
857.702 0.015 - 0.15 0.005 857.721 0.25 - 2.5 0.05 153.5 C17.205.MTS.20250410
857.703 0.03 - 0.3 0.01 857.725 3 - 30 0.5 153.5
857.704 0.05 - 0.5 0.01 857.727 5 - 50 1 127.5
857.705 0.1 - 1 0.02 857.728 10 - 100 2 127.5
354
