www.tauricon.sk STEREO MICROSCOPES

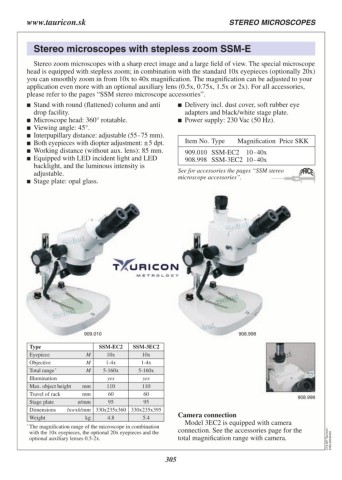

Stereo microscopes with stepless zoom SSM‑E

Stereo zoom microscopes with a sharp erect image and a large field of view. The special microscope
head is equipped with stepless zoom; in combination with the standard 10x eyepieces (optionally 20x)
you can smoothly zoom in from 10x to 40x magnification. The magnification can be adjusted to your
application even more with an optional auxiliary lens (0.5x, 0.75x, 1.5x or 2x). For all accessories,
please refer to the pages “SSM stereo microscope accessories”.

 Stand with round (flat­tened) column and anti  Delivery incl. dust cover, soft rubber eye
drop facility. adapters and black/white stage plate.

 Microscope head: 360° rotatable.  Power supply: 230 Vac (50 Hz).
 Viewing angle: 45°.
 Interpupillary distance: adjustable (55 - 75 mm). Item No. Type Magnification Price SKK
 Both eyepieces with diopter adjustment: ± 5 dpt. 909.010 SSM‑EC2 10 - 40x
 Working distance (without aux. lens): 85 mm. 908.998 SSM‑3EC2 10 - 40x
 Equipped with LED incident light and LED See for accessories the pages “SSM stereo
microscope accessories”.
back­light, and the luminous intensity is
adjustable.
 Stage plate: opal glass.

909.010 908.998

Type SSM‑EC2 SSM‑3EC2 908.998

Eyepiece M 10x 10x Camera connection
Model 3EC2 is equipped with camera
Objective M 1-4x 1-4x
connection. See the accessories page for the
Total range * M 5-160x 5-160x total magnification range with camera.

Illumination yes yes
Max. object height mm 110 110

Travel of rack mm 60 60

Stage plate ø/mm 95 95

Dimensions lxwxh/mm 330x235x360 330x235x395

Weight kg 4.8 5.4

* The magnification range of the microscope in combination C13.307.Tauricon-
with the 10x eye­pieces, the optional 20x eyepieces and the ENG.20240422
optional auxiliary lenses 0.5‑2x.

305
