www.tauricon.sk STEREO MICROSCOPES

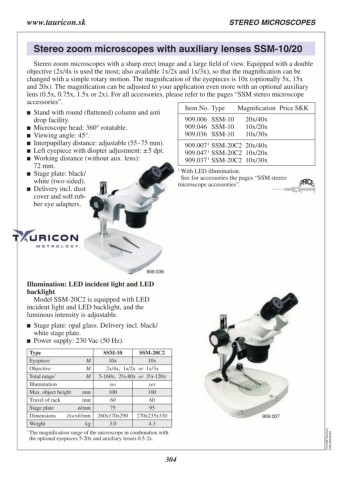

Stereo zoom microscopes with auxiliary lenses SSM‑10/20
Stereo zoom microscopes with a sharp erect image and a large field of view. Equipped with a double
objective (2x/4x is used the most; also available 1x/2x and 1x/3x), so that the magnification can be
changed with a simple rotary motion. The magnification of the eyepieces is 10x (optionally 5x, 15x
and 20x). The magnification can be adjusted to your application even more with an optional auxiliary
lens (0.5x, 0.75x, 1.5x or 2x). For all accessories, please refer to the pages “SSM stereo microscope
accessories”.
Item No. Type Magnification Price SKK
Stand with round (flattened) column and anti
drop facility. 909.006 SSM‑10 20x/40x
909.046 SSM‑10 10x/20x
Microscope head: 360° rotatable. 909.036 SSM‑10 10x/30x
Viewing angle: 45°.
Interpupillary distance: adjustable (55 - 75 mm).
Left eyepiece with diopter adjustment: ± 5 dpt. 909.007 1 SSM‑20C2 20x/40x
Working distance (without aux. lens): 909.047 1 SSM‑20C2 10x/20x
909.037 1 SSM‑20C2 10x/30x
72 mm. 1 With LED illumination.
Stage plate: black/ See for accessories the pages “SSM stereo
microscope accessories”.
white (two-sided).
Delivery incl. dust
cover and soft rub
ber eye adapters.
909.036
Illumination: LED incident light and LED
backlight
Model SSM‑20C2 is equipped with LED
incident light and LED backlight, and the
luminous intensity is adjustable.
Stage plate: opal glass. Delivery incl. black/
white stage plate.
Power supply: 230 Vac (50 Hz).
Type SSM‑10 SSM‑20C2
Eyepiece M 10x 10x
Objective M 2x/4x, 1x/2x or 1x/3x
Total range * M 5-160x, 2½-80x or 2½-120x
Illumination no yes
Max. object height mm 100 100
Travel of rack mm 60 60
Stage plate ø/mm 75 95
Dimensions lxwxh/mm 260x170x290 270x235x330 909.007
Weight kg 3.0 4.3
* The magnification range of the microscope in combination with C13.306.Tauricon-
the optional eyepieces 5‑20x and auxiliary lenses 0.5‑2x. ENG.20240422
