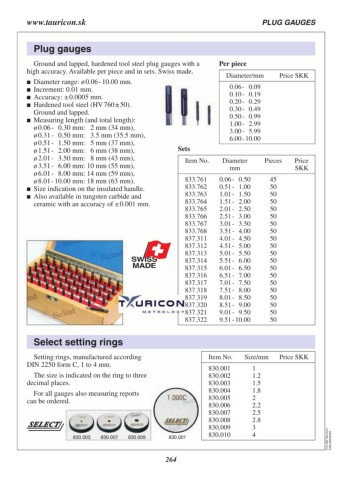

Page 264 - Schut Catalog

www.tauricon.sk PLUG GAUGES

Plug gauges

Ground and lapped, hardened tool steel plug gauges with a Per piece Price SKK
high accuracy. Available per piece and in sets. Swiss made. Diameter/mm
0.06 - 0.09
 Diameter range: ø 0.06 - 10.00 mm. 0.10 - 0.19
 Increment: 0.01 mm. 0.20 - 0.29
 Accuracy: ± 0.0005 mm. 0.30 - 0.49
 Hardened tool steel (HV 760 ± 50). 0.50 - 0.99
1.00 - 2.99
Ground and lapped. 3.00 - 5.99
 Measuring length (and total length): 6.00 - 10.00

ø 0.06 - 0.30 mm: 2 mm (34 mm), Sets Diameter Pieces Price
ø 0.31 - 0.50 mm: 3.5 mm (35.5 mm), Item No. mm 45 SKK
ø 0.51 - 1.50 mm: 5 mm (37 mm), 50
ø 1.51 - 2.00 mm: 6 mm (38 mm), 833.761 0.06 - 0.50 50
ø 2.01 - 3.50 mm: 8 mm (43 mm), 833.762 0.51 - 1.00 50
ø 3.51 - 6.00 mm: 10 mm (55 mm), 833.763 1.01 - 1.50 50
ø 6.01 - 8.00 mm: 14 mm (59 mm), 833.764 1.51 - 2.00 50
ø 8.01 - 10.00 mm: 18 mm (63 mm). 833.765 2.01 - 2.50 50
 Size indication on the insulated handle. 833.766 2.51 - 3.00 50
 Also available in tungsten carbide and 833.767 3.01 - 3.50 50
ceramic with an accuracy of ± 0.001 mm. 833.768 3.51 - 4.00 50
837.311 4.01 - 4.50 50
837.312 4.51 - 5.00 50
837.313 5.01 - 5.50 50
837.314 5.51 - 6.00 50
837.315 6.01 - 6.50 50
837.316 6.51 - 7.00 50
837.317 7.01 - 7.50 50
837.318 7.51 - 8.00 50
837.319 8.01 - 8.50 50
837.320 8.51 - 9.00 50
837.321 9.01 - 9.50
837.322 9.51 - 10.00

Select setting rings Item No. Size/mm Price SKK
830.001 1
Setting rings, manufactured according 830.001 830.002 1.2 C12.302.Tauricon-
DIN 2250 form C, 1 to 4 mm. 830.003 1.5 ENG.20240422
830.004 1.8
The size is indicated on the ring to three 830.005 2
decimal places. 830.006 2.2
830.007 2.5
For all gauges also measuring reports 830.008 2.8
can be ordered. 830.009 3
830.010 4
830.003 830.007 830.009
