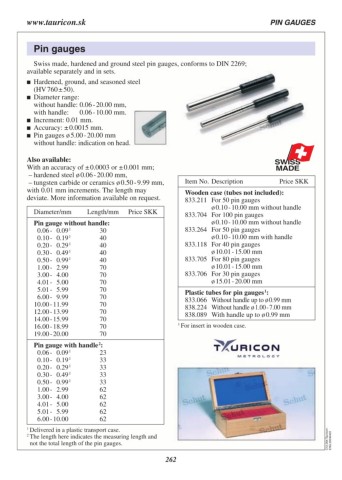

www.tauricon.sk PIN GAUGES

Pin gauges

Swiss made, hardened and ground steel pin gauges, conforms to DIN 2269;
available separately and in sets.
 Hardened, ground, and seasoned steel

(HV 760 ± 50).
 Diameter range:

without handle: 0.06 - 20.00 mm,
with handle: 0.06 - 10.00 mm.
 Increment: 0.01 mm.
 Accuracy: ± 0.0015 mm.
 Pin gauges ø 5.00 - 20.00 mm
without handle: indication on head.

Also available: Item No. Description Price SKK
With an accuracy of ± 0.0003 or ± 0.001 mm;
– hardened steel ø 0.06 - 20.00 mm, Wooden case (tubes not included):
– tungsten carbide or ceramics ø 0.50 - 9.99 mm, 833.211 For 50 pin gauges
with 0.01 mm increments. The length may
deviate. More information available on request. ø 0.10 - 10.00 mm without handle
833.704 For 100 pin gauges
Diameter/mm Length/mm Price SKK
ø 0.10 - 10.00 mm without handle
Pin gauge without handle: 833.264 For 50 pin gauges
0.06 - 0.09 1 30
0.10 - 0.19 1 40 ø 0.10 - 10.00 mm with handle
0.20 - 0.29 1 40 833.118 For 40 pin gauges
0.30 - 0.49 1 40
0.50 - 0.99 1 40 ø 10.01 - 15.00 mm
1.00 - 2.99 70 833.705 For 80 pin gauges
3.00 - 4.00 70
4.01 - 5.00 70 ø 10.01 - 15.00 mm
833.706 For 30 pin gauges

ø 15.01 - 20.00 mm

5.01 - 5.99 70 Plastic tubes for pin gauges 1:
6.00 - 9.99 70 833.066 Without handle up to ø 0.99 mm
10.00 - 11.99 70 838.224 Without handle ø 1.00 - 7.00 mm
12.00 - 13.99 70 838.089 With handle up to ø 0.99 mm
14.00 - 15.99 70
16.00 - 18.99 70 1 For insert in wooden case.

19.00 - 20.00 70

Pin gauge with handle 2:
0.06 - 0.09 1 23
0.10 - 0.19 1 33
0.20 - 0.29 1 33
0.30 - 0.49 1 33
0.50 - 0.99 1 33
1.00 - 2.99 62
3.00 - 4.00 62
4.01 - 5.00 62
5.01 - 5.99 62
6.00 - 10.00 62

1 Delivered in a plastic transport case. C12.204.Tauricon-
2 The length here indicates the measuring length and ENG.20240422
not the total length of the pin gauges.
