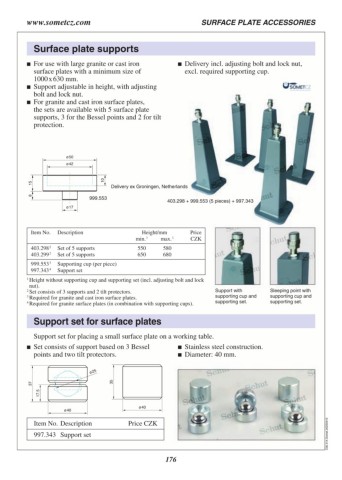

www.sometcz.com SURFACE PLATE ACCESSORIES
Surface plate supports Delivery incl. adjusting bolt and lock nut,
excl. required supporting cup.
For use with large granite or cast iron
surface plates with a minimum size of
1000 x 630 mm.
Support adjustable in height, with adjusting
bolt and lock nut.
For granite and cast iron surface plates,
the sets are available with 5 surface plate
supports, 3 for the Bessel points and 2 for tilt
protection.
ø50
ø42
8 15 Delivery ex Groningen, Netherlands
10
999.553
403.298 + 999.553 (5 pieces) + 997.343
ø17
Item No. Description Height/mm Price
min. 1 max. 1 CZK
403.298 2 Set of 5 supports 550 580
403.299 2 Set of 5 supports 650 680
999.553 3 Supporting cup (per piece)
997.343 4 Support set
1 Height without supporting cup and supporting set (incl. adjusting bolt and lock Support with Sleeping point with
nut). supporting cup and supporting cup and
2 Set consists of 3 supports and 2 tilt protectors. supporting set. supporting set.
3 Required for granite and cast iron surface plates.
4 Required for granite surface plates (in combination with supporting cups).
Support set for surface plates
Support set for placing a small surface plate on a working table.
Set consists of support based on 3 Bessel Stainless steel construction.
points and two tilt protectors. Diameter: 40 mm.
ø25
37
17.5
35
ø40 ø40 C06.314.Somet.20250410
Item No. Description Price CZK
997.343 Support set
