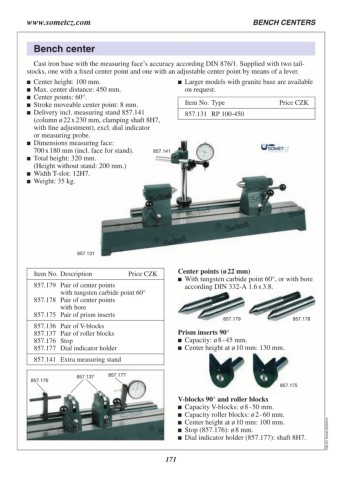

Page 171 - Schut Catalog

www.sometcz.com BENCH CENTERS

Bench center

Cast iron base with the measuring face’s accuracy according DIN 876/1. Supplied with two tail­
stocks, one with a fixed center point and one with an adjustable center point by means of a lever.

 Center height: 100 mm.  Larger models with granite base are available
 Max. center distance: 450 mm. on request.
 Center points: 60°.
 Stroke moveable center point: 8 mm. Item No. Type Price CZK
857.131 RP 100‑450
 Delivery incl. measuring stand 857.141
(column ø 22 x 230 mm, clamping shaft 8H7,
with fine adjustment), excl. dial indicator
or measuring probe.
 Dimensions measuring face:
700 x 180 mm (incl. face for stand).
857.141

 Total height: 320 mm.
(Height without stand: 200 mm.)
 Width T‑slot: 12H7.
 Weight: 35 kg.

857.131

Item No. Description Price CZK Center points (ø 22 mm)
 With tungsten carbide point 60°, or with bore
857.179 Pair of center points
with tungsten carbide point 60° according DIN 332‑A 1.6 x 3.8.

857.178 Pair of center points 857.179 857.178
with bore

857.175 Pair of prism inserts

857.136 Pair of V‑blocks Prism inserts 90°
857.137 Pair of roller blocks  Capacity: ø 8 - 45 mm.
857.176 Stop  Center height at ø 10 mm: 130 mm.
857.177 Dial indicator holder

857.141 Extra measuring stand

857.176 857.137 857.177

857.175 C06.221.Somet.20250410

V‑blocks 90° and roller blocks
 Capacity V‑blocks: ø 8 - 50 mm.
 Capacity roller blocks: ø 2 - 60 mm.
 Center height at ø 10 mm: 100 mm.
 Stop (857.176): ø 8 mm.
 Dial indicator holder (857.177): shaft 8H7.

171
