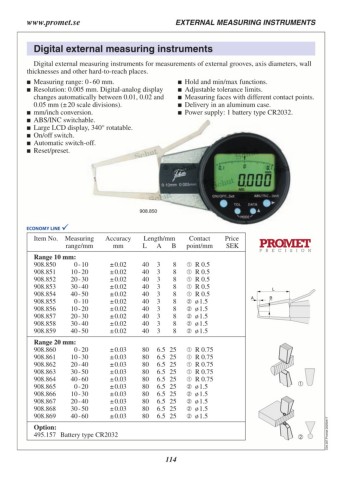

Page 114 - Schut Catalog
P. 114
www.promet.se EXTERNAL MEASURING INSTRUMENTS
Digital external measuring instruments
Digital external measuring instruments for measurements of external grooves, axis diameters, wall
thicknesses and other hard‑to‑reach places.
Measuring range: 0 - 60 mm. Hold and min/max functions.
Resolution: 0.005 mm. Digital-analog display Adjustable tolerance limits.
Measuring faces with different contact points.
changes automatically between 0.01, 0.02 and Delivery in an aluminum case.
0.05 mm (± 20 scale divisions). Power supply: 1 battery type CR2032.
mm/inch conversion.
ABS/INC switchable.
Large LCD display, 340° rotatable.
On/off switch.
Automatic switch-off.
Reset/preset.
908.850
Item No. Measuring Accuracy Length/mm Contact Price
range/mm mm L A B point/mm SEK
Range 10 mm: ± 0.02 40 3 8 R 0.5 A L
908.850 0 - 10 ± 0.02 40 3 8 R 0.5 B
908.851 10 - 20 ± 0.02 40 3 8 R 0.5
908.852 20 - 30 ± 0.02 40 3 8 R 0.5
908.853 30 - 40 ± 0.02 40 3 8 R 0.5
908.854 40 - 50 ± 0.02 40 3 8 ø 1.5
908.855 0 - 10 ± 0.02 40 3 8 ø 1.5
908.856 10 - 20 ± 0.02 40 3 8 ø 1.5
908.857 20 - 30 ± 0.02 40 3 8 ø 1.5
908.858 30 - 40 ± 0.02 40 3 8 ø 1.5
908.859 40 - 50
Range 20 mm: ± 0.03 80 6.5 25 R 0.75 C04.307.Promet.20250417
908.860 0 - 20 ± 0.03 80 6.5 25 R 0.75
908.861 10 - 30 ± 0.03 80 6.5 25 R 0.75
908.862 20 - 40 ± 0.03 80 6.5 25 R 0.75
908.863 30 - 50 ± 0.03 80 6.5 25 R 0.75
908.864 40 - 60 ± 0.03 80 6.5 25 ø 1.5
908.865 0 - 20 ± 0.03 80 6.5 25 ø 1.5
908.866 10 - 30 ± 0.03 80 6.5 25 ø 1.5
908.867 20 - 40 ± 0.03 80 6.5 25 ø 1.5
908.868 30 - 50 ± 0.03 80 6.5 25 ø 1.5
908.869 40 - 60
Option:
495.157 Battery type CR2032
114
