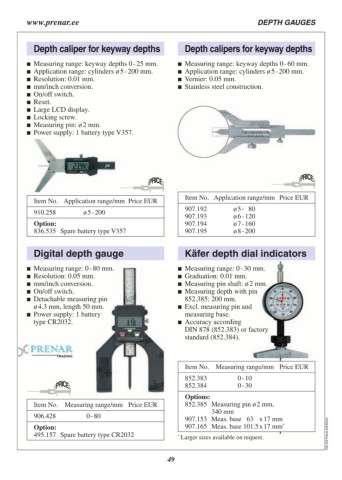

www.prenar.ee DEPTH GAUGES
Depth caliper for keyway depths Depth calipers for keyway depths
Measuring range: keyway depths 0 - 25 mm. Measuring range: keyway depths 0 - 60 mm.
Application range: cylinders ø 5 - 200 mm. Application range: cylinders ø 5 - 200 mm.
Resolution: 0.01 mm. Vernier: 0.05 mm.
mm/inch conversion. Stainless steel construction.
On/off switch.
Reset.
Large LCD display.
Locking screw.
Measuring pin: ø 2 mm.
Power supply: 1 battery type V357.
Item No. Application range/mm Price EUR Item No. Application range/mm Price EUR
910.258 ø 5 - 200 907.192 ø 5 - 80
907.193 ø 6 - 120
Option: 907.194 ø 7 - 160
836.535 Spare battery type V357 907.195 ø 8 - 200
Digital depth gauge Käfer depth dial indicators
Measuring range: 0 - 80 mm. Measuring range: 0 - 30 mm.
Resolution: 0.05 mm. Graduation: 0.01 mm.
mm/inch conversion. Measuring pin shaft: ø 2 mm.
On/off switch. Measuring depth with pin
Detachable measuring pin
852.385: 200 mm.
ø 4.3 mm, length 50 mm. Excl. measuring pin and
Power supply: 1 battery
measuring base.
type CR2032. Accuracy according
DIN 878 (852.383) or factory
standard (852.384).
Item No. Measuring range/mm Price EUR
852.383 0 - 10
852.384 0 - 30
Item No. Measuring range/mm Price EUR Options:
852.385 Measuring pin ø 2 mm,
906.428 0 - 80 C02.232.Prenar.20240422
340 mm
Option: 907.153 Meas. base 63 x 17 mm
495.157 Spare battery type CR2032 907.165 Meas. base 101.5 x 17 mm*
* Larger sizes available on request.
