www.prenar.ee MEASURING INSTRUMENT INTERFACES

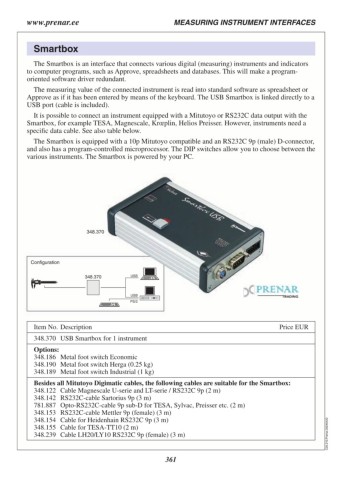

Smartbox

The Smartbox is an interface that connects various digital (measuring) instruments and indicators
to computer programs, such as Approve, spreadsheets and databases. This will make a program-
oriented software driver redundant.

The measuring value of the connected instrument is read into standard software as spreadsheet or
Approve as if it has been entered by means of the keyboard. The USB Smartbox is linked directly to a
USB port (cable is included).

It is possible to connect an instrument equipped with a Mitutoyo or RS232C data output with the
Smartbox, for example TESA, Magnescale, Krœplin, Helios Preisser. However, instruments need a
specific data cable. See also table below.

The Smartbox is equipped with a 10p Mitutoyo compatible and an RS232C 9p (male) D-connector,
and also has a program-controlled microprocessor. The DIP switches allow you to choose between the
various instruments. The Smartbox is powered by your PC.

348.370

Configuration

348.370 USB

USB
PS/2

Item No. Description Price EUR

348.370 USB Smartbox for 1 instrument

Options:
348.186 Metal foot switch Economic
348.190 Metal foot switch Herga (0.25 kg)
348.189 Metal foot switch Industrial (1 kg)

Besides all Mitutoyo Digimatic cables, the following cables are suitable for the Smartbox: C20.210.Prenar.20240422
348.122 Cable Magnescale U-serie and LT-serie / RS232C 9p (2 m)
348.142 RS232C-cable Sartorius 9p (3 m)
781.887 Opto-RS232C-cable 9p sub-D for TESA, Sylvac, Preisser etc. (2 m)
348.153 RS232C-cable Mettler 9p (female) (3 m)
348.154 Cable for Heidenhain RS232C 9p (3 m)
348.155 Cable for TESA-TT10 (2 m)
348.239 Cable LH20/LY10 RS232C 9p (female) (3 m)

361
