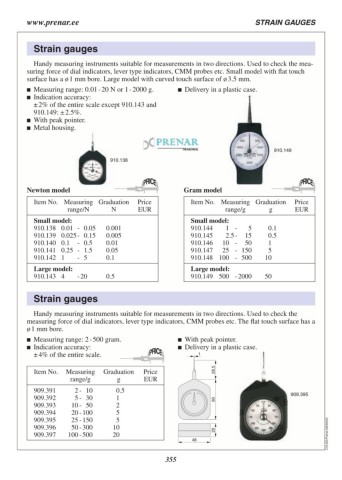

P. 355
www.prenar.ee STRAIN GAUGES
Strain gauges
Handy measuring instruments suitable for measurements in two directions. Used to check the mea-
suring force of dial indicators, lever type indicators, CMM probes etc. Small model with flat touch
surface has a ø 1 mm bore. Large model with curved touch surface of ø 3.5 mm.
Measuring range: 0.01 - 20 N or 1 - 2000 g. Delivery in a plastic case.
Indication accuracy:
± 2% of the entire scale except 910.143 and
910.149: ± 2.5%.
With peak pointer.
Metal housing.
910.149
910.138
Newton model Gram model
Item No. Measuring Graduation Price Item No. Measuring Graduation Price
range/N N EUR range/g g EUR
Small model: 0.001 Small model: 0.1
910.138 0.01 - 0.05 0.005 910.144 1 - 5 0.5
910.139 0.025 - 0.15 0.01 910.145 2.5 - 15 1
910.140 0.1 - 0.5 0.05 910.146 10 - 50 5
910.141 0.25 - 1.5 0.1 910.147 25 - 150 10
910.142 1 - 5 910.148 100 - 500
Large model: Large model:
910.143 4 - 20 0.5 910.149 500 - 2000 50
Strain gauges
Handy measuring instruments suitable for measurements in two directions. Used to check the
measuring force of dial indicators, lever type indicators, CMM probes etc. The flat touch surface has a
ø 1 mm bore.
Measuring range: 2 - 500 gram. With peak pointer.
Indication accuracy: Delivery in a plastic case.
± 4% of the entire scale. 1
Item No. Measuring Graduation Price 60 28.5
range/g g EUR
909.391 2 - 10 0.5 909.395
909.392 5 - 30 1
909.393 10 - 50 2 20 C18.323.Prenar.20240422
909.394 20 - 100 5
909.395 25 - 150 5 48
909.396 50 - 300 10
909.397 100 - 500 20
355
