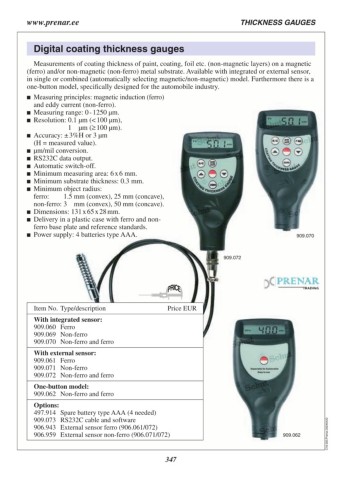

Page 347 - Schut Catalog
P. 347
www.prenar.ee THICKNESS GAUGES
Digital coating thickness gauges
Measurements of coating thickness of paint, coating, foil etc. (non-magnetic layers) on a magnetic
(ferro) and/or non-magnetic (non-ferro) metal substrate. Available with integrated or external sensor,
in single or combined (automatically selecting magnetic/non-magnetic) model. Furthermore there is a
one-button model, specifically designed for the automobile industry.
Measuring principles: magnetic induction (ferro) 909.070
and eddy current (non-ferro).
Measuring range: 0 - 1250 µm.
Resolution: 0.1 µm (< 100 µm),
1 µm (≥ 100 µm).
Accuracy: ± 3%H or 3 µm
(H = measured value).
µm/mil conversion.
RS232C data output.
Automatic switch-off.
Minimum measuring area: 6 x 6 mm.
Minimum substrate thickness: 0.3 mm.
Minimum object radius:
ferro: 1.5 mm (convex), 25 mm (concave),
non-ferro: 3 mm (convex), 50 mm (concave).
Dimensions: 131 x 65 x 28 mm.
Delivery in a plastic case with ferro and non-
ferro base plate and reference standards.
Power supply: 4 batteries type AAA.
909.072
Item No. Type/description Price EUR
With integrated sensor:
909.060 Ferro
909.069 Non-ferro
909.070 Non-ferro and ferro
With external sensor:
909.061 Ferro
909.071 Non-ferro
909.072 Non-ferro and ferro
One-button model:
909.062 Non-ferro and ferro
Options: 909.062 C18.303.Prenar.20240422
497.914 Spare battery type AAA (4 needed)
909.073 RS232C cable and software
906.943 External sensor ferro (906.061/072)
906.959 External sensor non-ferro (906.071/072)
