www.prenar.ee THICKNESS GAUGES

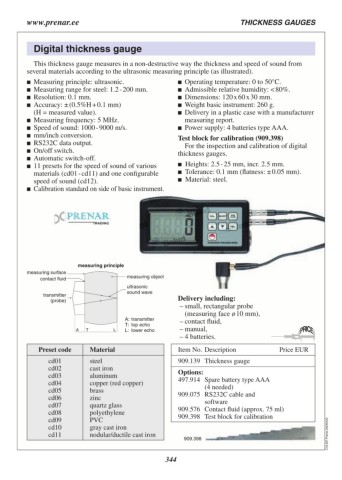

Digital thickness gauge

This thickness gauge measures in a non-destructive way the thickness and speed of sound from
several materials according to the ultrasonic measuring principle (as illustrated).

 Measuring principle: ultrasonic.  Operating temperature: 0 to 50°C.
 Measuring range for steel: 1.2 - 200 mm.  Admissible relative humidity: < 80%.
 Resolution: 0.1 mm.  Dimensions: 120 x 60 x 30 mm.
 Accuracy: ± (0.5%H + 0.1 mm)  Weight basic instrument: 260 g.
 Delivery in a plastic case with a manufacturer
(H = measured value).
 Measuring frequency: 5 MHz. measuring report.
 Speed of sound: 1000 - 9000 m/s.  Power supply: 4 batteries type AAA.
 mm/inch conversion. Test block for calibration (909.398)
 RS232C data output.
 On/off switch. For the inspection and calibration of digital
 Automatic switch-off. thickness gauges.
 11 presets for the speed of sound of various  Heights: 2.5 - 25 mm, incr. 2.5 mm.
 Tolerance: 0.1 mm (flatness: ± 0.05 mm).
materials (cd01 - cd11) and one configurable  Material: steel.
speed of sound (cd12).
 Calibration standard on side of basic instrument.

measuring surface measuring principle Delivery including:
contact fluid measuring object – small, rectangular probe
ultrasonic
transmitter sound wave (measuring face ø 10 mm),
(probe) – contact fluid,
– manual,
AT A: transmitter – 4 batteries.
T: top echo
L L: lower echo

Preset code Material Item No. Description Price EUR
cd01 steel
cd02 cast iron 909.139 Thickness gauge C18.307.Prenar.20240422
cd03 aluminum Options:
cd04 copper (red copper) 497.914 Spare battery type AAA
cd05 brass
cd06 zinc (4 needed)
cd07 quartz glass 909.075 RS232C cable and
cd08 polyethylene
cd09 PVC software
cd10 gray cast iron 909.576 Contact fluid (approx. 75 ml)
cd11 nodular/ductile cast iron 909.398 Test block for calibration

909.398

344
