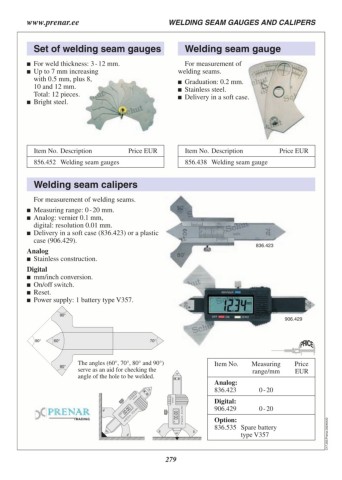

Page 279 - Schut Catalog

www.prenar.ee WELDING SEAM GAUGES AND CALIPERS

Set of welding seam gauges Welding seam gauge

 For weld thickness: 3 - 12 mm. For measurement of
 Up to 7 mm increasing welding seams.
 Graduation: 0.2 mm.
with 0.5 mm, plus 8,  Stainless steel.
10 and 12 mm.  Delivery in a soft case.
Total: 12 pieces.
 Bright steel.

Item No. Description Price EUR Item No. Description Price EUR
856.438 Welding seam gauge
856.452 Welding seam gauges

Welding seam calipers 836.423
906.429
For measurement of welding seams.
 Measuring range: 0 - 20 mm.
 Analog: vernier 0.1 mm,

digital: resolution 0.01 mm.
 Delivery in a soft case (836.423) or a plastic

case (906.429).
Analog
 Stainless construction.
Digital
 mm/inch conversion.
 On/off switch.
 Reset.
 Power supply: 1 battery type V357.

90°

90° 60° 70°

The angles (60°, 70°, 80° and 90°) 70° Item No. Measuring Price
80° serve as an aid for checking the range/mm EUR
angle of the hole to be welded.
Analog:
70° 836.423 0 - 20
60°
mm/inch mm/inch Digital:
906.429
mm00.00 ZERO ZERO 0 - 20

90° ON mm 00.00

OFF OFF ON Option: C17.203.Prenar.20240422
836.535 Spare battery
90° 60° 80°
type V357
80°

279
