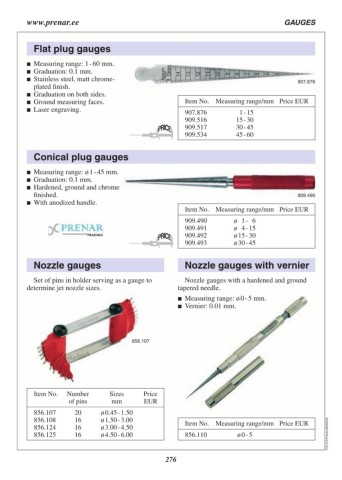

Page 276 - Schut Catalog

www.prenar.ee GAUGES

Flat plug gauges 907.876

 Measuring range: 1 - 60 mm. Item No. Measuring range/mm Price EUR
 Graduation: 0.1 mm.
 Stainless steel, matt chrome- 907.876 1 - 15
909.516 15 - 30
plated finish. 909.517 30 - 45
 Graduation on both sides. 909.534 45 - 60
 Ground measuring faces.
 Laser engraving. 909.490

Conical plug gauges Item No. Measuring range/mm Price EUR

 Measuring range: ø 1 - 45 mm. 909.490 ø 1 - 6
 Graduation: 0.1 mm. 909.491 ø 4 - 15
 Hardened, ground and chrome 909.492 ø 15 - 30
909.493 ø 30 - 45
finished.
 With anodized handle. Nozzle gauges with vernier

Nozzle gauges Nozzle gauges with a hardened and ground
tapered needle.
Set of pins in holder serving as a gauge to  Measuring range: ø 0 - 5 mm.
determine jet nozzle sizes.  Vernier: 0.01 mm.

856.107

Item No. Number Sizes Price
of pins mm EUR

856.107 20 ø 0.45 - 1.50 Item No. Measuring range/mm Price EUR C12.213.Prenar.20240422
856.108 16 ø 1.50 - 3.00
856.124 16 ø 3.00 - 4.50 856.110 ø 0 - 5
856.125 16 ø 4.50 - 6.00

276
