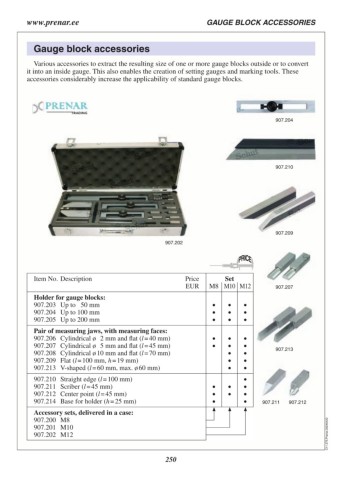

www.prenar.ee GAUGE BLOCK ACCESSORIES
Gauge block accessories
Various accessories to extract the resulting size of one or more gauge blocks outside or to convert
it into an inside gauge. This also enables the creation of setting gauges and marking tools. These
accessories considerably increase the applicability of standard gauge blocks.
907.204
907.210
907.209
907.202
Item No. Description Price Set
EUR M8 M10 M12
Holder for gauge blocks: 907.207
907.203 Up to 50 mm
907.204 Up to 100 mm • • •
907.205 Up to 200 mm • • •
Pair of measuring jaws, with measuring faces: • • •
907.206 Cylindrical ø 2 mm and flat (l = 40 mm)
907.207 Cylindrical ø 5 mm and flat (l = 45 mm) • • • 907.213
907.208 Cylindrical ø 10 mm and flat (l = 70 mm) • • • 907.211 907.212
907.209 Flat (l = 100 mm, h = 19 mm) • •
907.213 V‑shaped (l = 60 mm, max. ø 60 mm) • •
907.210 Straight edge (l = 100 mm) • •
907.211 Scriber (l = 45 mm) •
907.212 Center point (l = 45 mm) • • •
907.214 Base for holder (h = 25 mm) • • •
Accessory sets, delivered in a case: • •
907.200 M8
907.201 M10 C11.275.Prenar.20240422
907.202 M12
