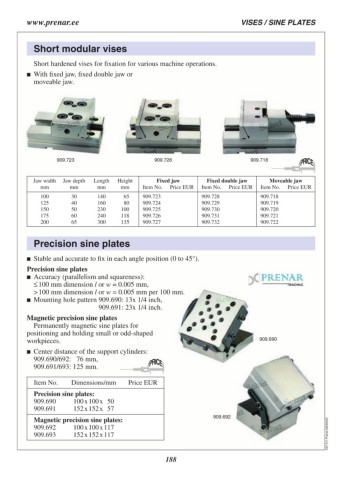

Page 188 - Schut Catalog
P. 188
www.prenar.ee VISES / SINE PLATES
Short modular vises
Short hardened vises for fixation for various machine operations.
With fixed jaw, fixed double jaw or
moveable jaw.
909.723 909.728 909.718
Jaw width Jaw depth Length Height Fixed jaw Fixed double jaw Moveable jaw
mm mm mm mm Item No. Price EUR Item No. Price EUR Item No. Price EUR
100 30 140 65 909.723 909.728 909.718
125 40 160 80 909.724 909.729 909.719
150 50 230 100 909.725 909.730 909.720
175 60 240 118 909.726 909.731 909.721
200 65 300 135 909.727 909.732 909.722
Precision sine plates 909.690
Stable and accurate to fix in each angle position (0 to 45°). 909.692 C07.311.Prenar.20240422
Precision sine plates
Accuracy (parallelism and squareness):
≤ 100 mm dimension l or w = 0.005 mm,
> 100 mm dimension l or w = 0.005 mm per 100 mm.
Mounting hole pattern 909.690: 13x 1/4 inch,
909.691: 23x 1/4 inch.
Magnetic precision sine plates
Permanently magnetic sine plates for
positioning and holding small or odd-shaped
workpieces.
Center distance of the support cylinders:
909.690/692: 76 mm,
909.691/693: 125 mm.
Item No. Dimensions/mm Price EUR
Precision sine plates:
909.690 100 x 100 x 50
909.691 152 x 152 x 57
Magnetic precision sine plates:
909.692 100 x 100 x 117
909.693 152 x 152 x 117
