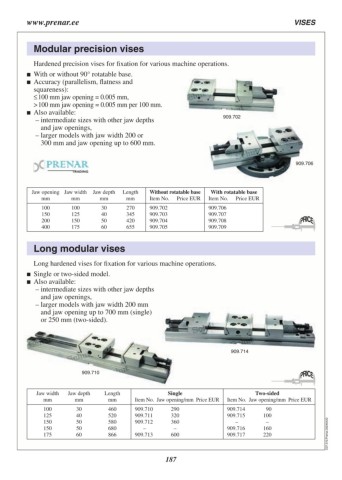

www.prenar.ee VISES
Modular precision vises 909.706
Hardened precision vises for fixation for various machine operations.
With or without 90° rotatable base. 909.702
Accuracy (parallelism, flatness and
squareness):
≤ 100 mm jaw opening = 0.005 mm,
> 100 mm jaw opening = 0.005 mm per 100 mm.
Also available:
– intermediate sizes with other jaw depths
and jaw openings,
– larger models with jaw width 200 or
300 mm and jaw opening up to 600 mm.
Jaw opening Jaw width Jaw depth Length Without rotatable base With rotatable base
mm mm mm mm Item No. Price EUR Item No. Price EUR
100 100 30 270 909.702 909.706
150 125 40 345 909.703 909.707
200 150 50 420 909.704 909.708
400 175 60 655 909.705 909.709
Long modular vises
Long hardened vises for fixation for various machine operations.
Single or two-sided model.
Also available:
– intermediate sizes with other jaw depths
and jaw openings,
– larger models with jaw width 200 mm
and jaw opening up to 700 mm (single)
or 250 mm (two-sided).
909.714
909.710
Jaw width Jaw depth Length Single Two-sided
mm mm mm Item No. Jaw opening/mm Price EUR Item No. Jaw opening/mm Price EUR
100 30 460 909.710 290 909.714 90 C07.310.Prenar.20240422
125 40 520 909.711 320 909.715 100
150 50 580 909.712 360 –
150 50 680 – – 909.716 –
175 60 866 909.713 600 909.717 160
220
187
