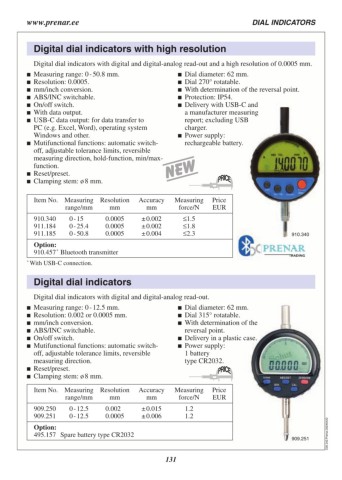

Page 131 - Schut Catalog
P. 131
www.prenar.ee DIAL INDICATORS
Digital dial indicators with high resolution
Digital dial indicators with digital and digital-analog read-out and a high resolution of 0.0005 mm.
Measuring range: 0 - 50.8 mm. Dial diameter: 62 mm.
Resolution: 0.0005. Dial 270° rotatable.
mm/inch conversion. With determination of the reversal point.
ABS/INC switchable. Protection: IP54.
On/off switch. Delivery with USB-C and
With data output.
USB-C data output: for data transfer to a manufacturer measuring
report; excluding USB
PC (e.g. Excel, Word), operating system charger.
Windows and other. Power supply:
Mutifunctional functions: automatic switch- rechargeable battery.
off, adjustable tolerance limits, reversible
measuring direction, hold-function, min/max-
function.
Reset/preset.
Clamping stem: ø 8 mm.
Item No. Measuring Resolution Accuracy Measuring Price
range/mm mm mm force/N EUR
910.340 0 - 15 0.0005 ± 0.002 ≤1.5 910.340
911.184 0 - 25.4 0.0005 ± 0.002 ≤1.8 909.251
911.185 0 - 50.8 0.0005 ± 0.004 ≤2.3
Option:
910.457 * Bluetooth transmitter
* With USB-C connection.
Digital dial indicators
Digital dial indicators with digital and digital-analog read-out.
Measuring range: 0 - 12.5 mm. Dial diameter: 62 mm.
Resolution: 0.002 or 0.0005 mm. Dial 315° rotatable.
mm/inch conversion. With determination of the
ABS/INC switchable.
On/off switch. reversal point.
Mutifunctional functions: automatic switch- Delivery in a plastic case.
Power supply:
off, adjustable tolerance limits, reversible
measuring direction. 1 battery
Reset/preset. type CR2032.
Clamping stem: ø 8 mm.
Item No. Measuring Resolution Accuracy Measuring Price
range/mm mm mm force/N EUR
909.250 0 - 12.5 0.002 ± 0.015 1.2 C05.342.Prenar.20240422
909.251 0 - 12.5 0.0005 ± 0.006 1.2
Option:
495.157 Spare battery type CR2032
131
