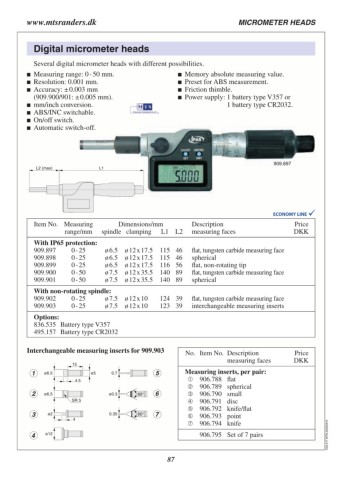

www.mtsranders.dk MICROMETER HEADS
Digital micrometer heads
Several digital micrometer heads with different possibilities.
Measuring range: 0 - 50 mm. Memory absolute measuring value.
Resolution: 0.001 mm. Preset for ABS measurement.
Accuracy: ± 0.003 mm Friction thimble.
Power supply: 1 battery type V357 or
(909.900/901: ± 0.005 mm).
mm/inch conversion. 1 battery type CR2032.
ABS/INC switchable.
On/off switch.
Automatic switch-off.
L2 (max) L1 909.897
Item No. Measuring Dimensions/mm Description Price
range/mm spindle clamping L1 L2 measuring faces DKK
flat, tungsten carbide measuring face
With IP65 protection: ø 6.5 ø 12 x 17.5 115 46 spherical
909.897 0 - 25 ø 6.5 ø 12 x 17.5 115 46 flat, non-rotating tip
909.898 0 - 25 ø 6.5 ø 12 x 17.5 116 56 flat, tungsten carbide measuring face
909.899 0 - 25 ø 7.5 ø 12 x 35.5 140 89 spherical
909.900 0 - 50 ø 7.5 ø 12 x 35.5 140 89 flat, tungsten carbide measuring face
909.901 0 - 50 interchangeable measuring inserts
With non-rotating spindle:
909.902 0 - 25 ø 7.5 ø 12 x 10 124 39
909.903 0 - 25 ø 7.5 ø 12 x 10 123 39
Options:
836.535 Battery type V357
495.157 Battery type CR2032
Interchangeable measuring inserts for 909.903 No. Item No. Description Price
measuring faces DKK
15
1 ø6.5 4.5 ø5 0.7 5 Measuring inserts, per pair:
2 ø6.5 ø0.3 60° 6 906.788 flat
3 ø2 SR 5 0.35 60° 7 906.789 spherical
4 906.790 small
906.791 disc C03.317.MTS.20250410
4 ø12 906.792 knife/flat
906.793 point
906.794 knife
906.795 Set of 7 pairs
