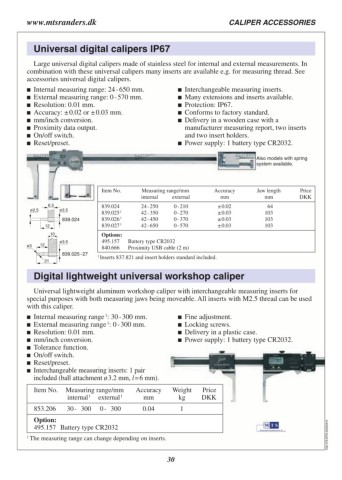

Page 30 - Schut Catalog

www.mtsranders.dk CALIPER ACCESSORIES

Universal digital calipers IP67

Large universal digital calipers made of stainless steel for internal and external mea­sure­ments. In
combination with these universal calipers many inserts are available e.g. for measuring thread. See
accessories universal digital calipers.

 Internal measuring range: 24 - 650 mm.  Interchangeable measuring inserts.
 External measuring range: 0 - 570 mm.  Many extensions and inserts available.
 Resolution: 0.01 mm.  Protection: IP67.
 Accuracy: ± 0.02 or ± 0.03 mm.  Conforms to factory standard.
 mm/inch conversion.  Delivery in a wooden case with a
 Proximity data output.
 On/off switch. manufacturer measuring report, two inserts
 Reset/preset. and two insert holders.
 Power supply: 1 battery type CR2032.

Also models with spring
system available.

Item No. Measuring range/mm Accuracy Jaw length Price
internal external mm mm DKK

ø2.5 6.5 839.024 24 - 250 0 - 210 ± 0.02 64
ø3.5 839.025 1 42 - 350 0 - 270 ± 0.03 103
839.026 1 42 - 450 0 - 370 ± 0.03 103
839.024 839.027 1 42 - 650 0 - 570 ± 0.03 103
12

10 Options:
495.157 Battery type CR2032
ø3 12 ø3.5 840.666 Proximity USB cable (2 m)

839.025 - 27 1 Inserts 837.821 and insert holders standard included.

21

Digital lightweight universal workshop caliper

Universal lightweight aluminum workshop caliper with interchangeable measuring inserts for
special purposes with both measuring jaws being moveable. All inserts with M2.5 thread can be used
with this caliper.

 Internal measuring range 1: 30 - 300 mm.  Fine adjustment.
 External measuring range 1: 0 - 300 mm.  Locking screws.
 Resolution: 0.01 mm.  Delivery in a plastic case.
 mm/inch conversion.  Power supply: 1 battery type CR2032.
 Tolerance function.
 On/off switch.
 Reset/preset.
 Interchangeable measuring inserts: 1 pair

included (ball attachment ø 3.2 mm, l = 6 mm).

Item No. Measuring range/mm Accuracy Weight Price
internal 1 external 1 mm kg DKK

853.206 30 - 300 0 - 300 0.04 1

Option: C02.379.MTS.20250410
495.157 Battery type CR2032

1 The measuring range can change depending on inserts.

30
