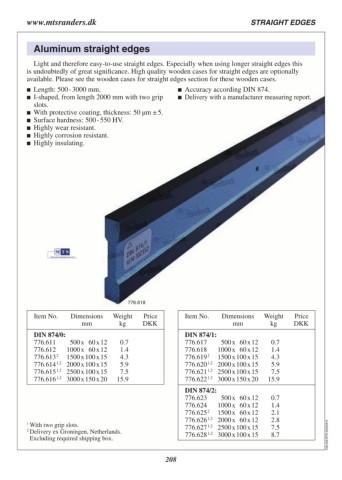

www.mtsranders.dk                                       STRAIGHT EDGES

Aluminum straight edges

  Light and therefore easy-to-use straight edges. Especially when using longer straight edges this
is undoubtedly of great significance. High quality wooden cases for straight edges are optionally
available. Please see the wooden cases for straight edges section for these wooden cases.

	 Length: 500 - 3000 mm.                               	 Accuracy according DIN 874.
	 I-shaped, from length 2000 mm with two grip          	 Delivery with a manufacturer measuring report.

  slots.
	 With protective coating, thickness: 50 µm ± 5.
	 Surface hardness: 500 - 550 HV.
	 Highly wear resistant.
	 Highly corrosion resistant.
	 Highly insulating.

                                         776.618

Item No. Dimensions 	 Weight 	           Price          Item No. Dimensions 	 Weight 	        Price
                     mm kg               DKK                                 mm kg            DKK

DIN 874/0:                       0.7                    DIN 874/1:                       0.7
776.611 	 500	x	 60	x	12 	       1.4                    776.617 	 500	x	 60	x	12 	       1.4
776.612 	1000	x	 60	x	12 	       4.3                    776.618 	1000	x	 60	x	12 	       4.3
776.613 2 	1500	x	100	x	15 	     5.9                    776.619 2 	1500	x	100	x	15 	     5.9
776.614 1,2 	2000	x	100	x	15 	   7.5                    776.620 1,2 	2000	x	100	x	15 	   7.5
776.615 1,2 	2500	x	100	x	15 	  15.9                    776.621 1,2 	2500	x	100	x	15 	  15.9
776.616 1,2 	3000	x	150	x	20 	                          776.622 1,2 	3000	x	150	x	20

1	With two grip slots.                                  DIN 874/2:                      0.7                C09.309.MTS.20250410
2	Delivery ex Groningen, Netherlands. 	                 776.623 	 500	x	 60	x	12 	      1.4
 Excluding required shipping box.                       776.624 	1000	x	 60	x	12 	      2.1
                                                        776.625 2 	1500	x	 60	x	12 	    2.8
                                                        776.626 1,2 	2000	x	 60	x	12 	  7.5
                                                        776.627 1,2 	2500	x	100	x	15 	  8.7
                                                        776.628 1,2 	3000	x	100	x	15
