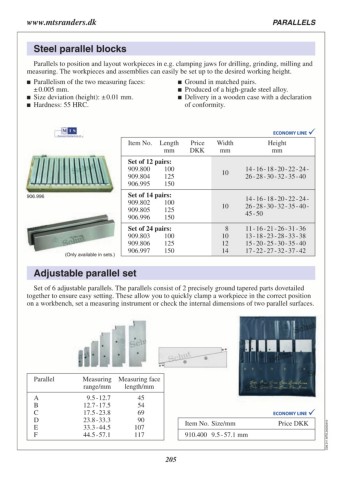

www.mtsranders.dk                                                               PARALLELS

Steel parallel blocks

  Parallels to position and layout workpieces in e.g. clamping jaws for drilling, grinding, milling and
measuring. The workpieces and assemblies can easily be set up to the desired working height.

	 Parallelism of the two measuring faces: 	       	 Ground in matched pairs.
  ± 0.005 mm.                                      	 Produced of a high-grade steel alloy.
                                                   	 Delivery in a wooden case with a declaration
	 Size deviation (height): ± 0.01 mm.
	 Hardness: 55 HRC.                                 of conformity.

                                      Item No. Length 	  Price  Width 	         Height
                                                     mm  DKK     mm              mm

                                      Set of 12 pairs:
                                     909.800 	 100              		 10    	 14 - 16 - 18 - 20 - 22 - 24 -
                                     909.804 	 125              	        	 26 - 28 - 30 - 32 - 35 - 40
                                     906.995 	 150
                                      Set of 14 pairs:
906.996                              909.802 	 100              	        		 14 - 16 - 18 - 20 - 22 - 24 -
                                     909.805 	 125              		 10    	 26 - 28 - 30 - 32 - 35 - 40 -
                                     906.996 	 150              	        	 45 - 50
                                      Set of 24 pairs:
          (Only available in sets.)  909.803 	 100              	8       	 11 - 16 - 21 - 26 - 31 - 36
                                     909.806 	 125              	 10     	 13 - 18 - 23 - 28 - 33 - 38
                                     906.997 	 150              	 12     	 15 - 20 - 25 - 30 - 35 - 40
                                                                	 14     	 17 - 22 - 27 - 32 - 37 - 42

  Adjustable parallel set

  Set of 6 adjustable parallels. The parallels consist of 2 precisely ground tapered parts dovetailed
together to ensure easy setting. These allow you to quickly clamp a workpiece in the correct position
on a workbench, set a measuring instrument or check the internal dimensions of two parallel surfaces.

Parallel  Measuring 	 Measuring face
A         range/mm length/mm
B
C         	   9.5	-	12.7               45                Item No. Size/mm       Price DKK                  C09.311.MTS.20250410
D         	 12.7	-	17.5                54                910.400 9.5 - 57.1 mm
E         	 17.5	-	23.8                69
F         	 23.8	-	33.3                90
          	 33.3	-	44.5              107
          	 44.5	-	57.1              117
