www.mtsranders.dk                                                                           BENCH CENTERS

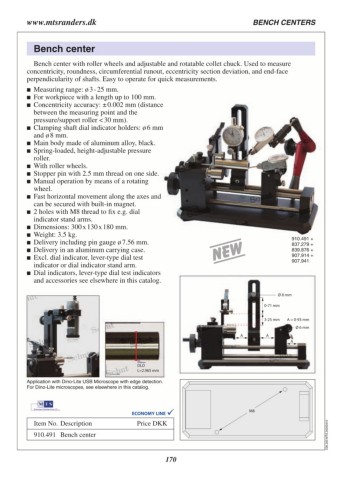

Bench center

  Bench center with roller wheels and adjustable and rotatable collet chuck. Used to measure
concentricity, roundness, circumferential runout, eccentricity section deviation, and end-face
perpendicularity of shafts. Easy to operate for quick measurements.

	 Measuring range: ø 3 - 25 mm.                                                                                  910.491 +
	 For workpiece with a length up to 100 mm.                                                                      837.279 +
	 Concentricity accuracy: ± 0.002 mm (distance                                                                   839.876 +
                                                                                                                  907.914 +
  between the measuring point and the                                                                             907.941
  pressure/support roller < 30 mm).
	 Clamping shaft dial indicator holders: ø 6 mm
  and ø 8 mm.
	 Main body made of aluminum alloy, black.
	 Spring-loaded, height-adjustable pressure
  roller.
	 With roller wheels.
	 Stopper pin with 2.5 mm thread on one side.
	 Manual operation by means of a rotating
  wheel.
	 Fast horizontal movement along the axes and
  can be secured with built-in magnet.
	 2 holes with M8 thread to fix e.g. dial
  indicator stand arms.
	 Dimensions: 300 x 130 x 180 mm.
	 Weight: 3.5 kg.
	 Delivery including pin gauge ø 7.56 mm.
	 Delivery in an aluminum carrying case.
	 Excl. dial indicator, lever-type dial test
  indicator or dial indicator stand arm.
	 Dial indicators, lever-type dial test indicators
  and accessories see elsewhere in this catalog.

                                                                                                          Ø 8 mm
                                                                                                0-71 mm

                                                                                                             3-25 mm A = 0-93 mm

                                                                                                                                    Ø 6 mm

                                                                                            AA
                                                                                                                                A

                                                                                DLO
                                                                                L=2.965 mm
Application with Dino-Lite USB Microscope with edge detection.
For Dino-Lite microscopes, see elsewhere in this catalog.

                                                                                            M8

Item No. Description  Price DKK                                                                                                             C06.320.MTS.20250410
910.491 Bench center             170
