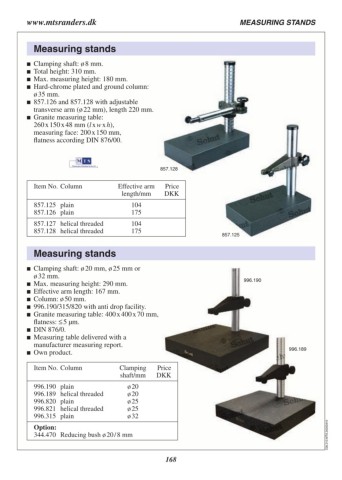

P. 168
www.mtsranders.dk MEASURING STANDS
Measuring stands 857.125
996.190
Clamping shaft: ø 8 mm. 996.189
Total height: 310 mm.
Max. measuring height: 180 mm.
Hard-chrome plated and ground column:
ø 35 mm.
857.126 and 857.128 with adjustable
transverse arm (ø 22 mm), length 220 mm.
Granite measuring table:
260 x 150 x 48 mm (l x w x h),
measuring face: 200 x 150 mm,
flatness according DIN 876/00.
857.128
Item No. Column Effective arm Price
length/mm DKK
857.125 plain
857.126 plain 104
857.127 helical threaded 175
857.128 helical threaded 104
175
Measuring stands
Clamping shaft: ø 20 mm, ø 25 mm or
ø 32 mm.
Max. measuring height: 290 mm.
Effective arm length: 167 mm.
Column: ø 50 mm.
996.190/315/820 with anti drop facility.
Granite measuring table: 400 x 400 x 70 mm,
flatness: ≤ 5 µm.
DIN 876/0.
Measuring table delivered with a
manufacturer measuring report.
Own product.
Item No. Column Clamping Price
shaft/mm DKK
996.190 plain ø 20
996.189 helical threaded ø 20
996.820 plain ø 25
996.821 helical threaded ø 25
996.315 plain ø 32
Option: C06.213.MTS.20250410
344.470 Reducing bush ø 20 / 8 mm
168
