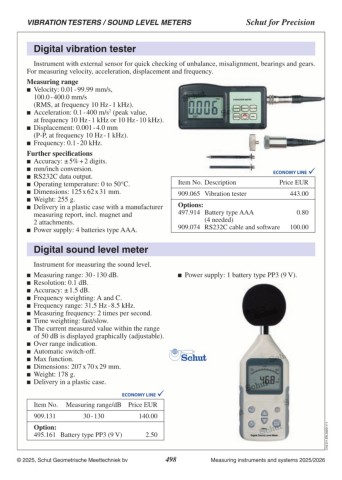

Page 498 - Schut Catalog

VIBRATION TESTERS / SOUND LEVEL METERS Schut for Precision

Digital vibration tester

Instrument with external sensor for quick checking of unbalance, misalignment, bearings and gears.
For measuring velocity, acceleration, displacement and frequency.

Measuring range
 Velocity: 0.01 - 99.99 mm/s,

100.0 - 400.0 mm/s
(RMS, at frequency 10 Hz - 1 kHz).
 Acceleration: 0.1 - 400 m/s2 (peak value,
at frequency 10 Hz - 1 kHz or 10 Hz - 10 kHz).
 Displacement: 0.001 - 4.0 mm
(P‑P, at frequency 10 Hz - 1 kHz).
 Frequency: 0.1 - 20 kHz.

Further specifications Item No. Description Price EUR
 Accuracy: ± 5% + 2 digits.
 mm/inch conversion. 909.065 Vibration tester 443.00
 RS232C data output.
 Operating temperature: 0 to 50°C. Options: 0.80
 Dimensions: 125 x 62 x 31 mm. 497.914 Battery type AAA 100.00
 Weight: 255 g.
 Delivery in a plastic case with a manufacturer (4 needed)
909.074 RS232C cable and software
measuring report, incl. magnet and
2 attachments.
 Power supply: 4 batteries type AAA.

Digital sound level meter  Power supply: 1 battery type PP3 (9 V).

Instrument for measuring the sound level.
 Measuring range: 30 - 130 dB.
 Resolution: 0.1 dB.
 Accuracy: ± 1.5 dB.
 Frequency weighting: A and C.
 Frequency range: 31.5 Hz - 8.5 kHz.
 Measuring frequency: 2 times per second.
 Time weighting: fast/slow.
 The current measured value within the range

of 50 dB is displayed graphically (adjustable).
 Over range indication.
 Automatic switch-off.
 Max function.
 Dimensions: 207 x 70 x 29 mm.
 Weight: 178 g.
 Delivery in a plastic case.

Item No. Measuring range/dB Price EUR

909.131 30 - 130 140.00

Option: 2.50 C18.311.EN.20250321
495.161 Battery type PP3 (9 V)
