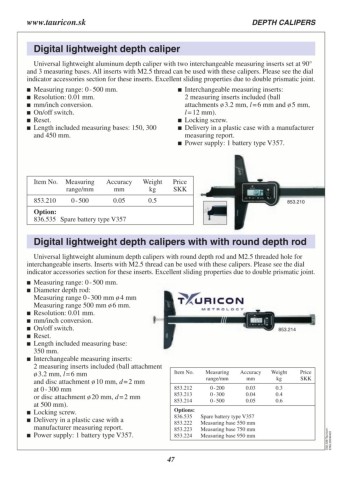

www.tauricon.sk                                                           DEPTH CALIPERS

Digital lightweight depth caliper

  Universal lightweight aluminum depth caliper with two interchangeable measuring inserts set at 90°
and 3 measuring bases. All inserts with M2.5 thread can be used with these calipers. Please see the dial
indicator accessories section for these inserts. Excellent sliding properties due to double prismatic joint.

	 Measuring range: 0 - 500 mm.                      	 Interchangeable measuring inserts:
	 Resolution: 0.01 mm.                                2 measuring inserts included (ball
	 mm/inch conversion.                                 attachments ø 3.2 mm, l = 6 mm and ø 5 mm,
	 On/off switch.                                      l = 12 mm).
	 Reset.
	 Length included measuring bases: 150, 300         	 Locking screw.
                                                     	 Delivery in a plastic case with a manufacturer
  and 450 mm.
                                                       measuring report.
                                                     	 Power supply: 1 battery type V357.

Item No. Measuring 	 Accuracy 	  Weight 	        Price
range/mm           mm              kg            SKK
                                   0.5
853.210 	 0	-	500  0.05                                                               853.210

Option:
836.535 Spare battery type V357

Digital lightweight depth calipers with with round depth rod

  Universal lightweight aluminum depth calipers with round depth rod and M2.5 threaded hole for
interchangeable inserts. Inserts with M2.5 thread can be used with these calipers. Please see the dial
indicator accessories section for these inserts. Excellent sliding properties due to double prismatic joint.

	 Measuring range: 0 - 500 mm.                                                       853.214
	 Diameter depth rod:
                                                 Item No.    Measuring 	  Accuracy 	  Weight 	  Price
  Measuring range 0 - 300 mm ø 4 mm 	                        range/mm        mm         kg      SKK
  Measuring range 500 mm ø 6 mm.                 853.212
	 Resolution: 0.01 mm.                          853.213   	 0	-	200         0.03       0.3
	 mm/inch conversion.                           853.214   	 0	-	300         0.04       0.4
	 On/off switch.                                          	 0	-	500         0.05       0.6
	 Reset.                                        Options:
	 Length included measuring base: 	             836.535   Spare battery type V357                            C02.339.Tauricon-
  350 mm.                                        853.222   Measuring base 550 mm                                 ENG.20240422
	 Interchangeable measuring inserts:            853.223   Measuring base 750 mm
  2 measuring inserts included (ball attachment  853.224   Measuring base 950 mm
  ø 3.2 mm, l = 6 mm
  and disc attachment ø 10 mm, d = 2 mm
  at 0 - 300 mm
  or disc attachment ø 20 mm, d = 2 mm
  at 500 mm).
	 Locking screw.
	 Delivery in a plastic case with a
  manufacturer measuring report.
	 Power supply: 1 battery type V357.
