Page 315 - Schut Catalog
P. 315

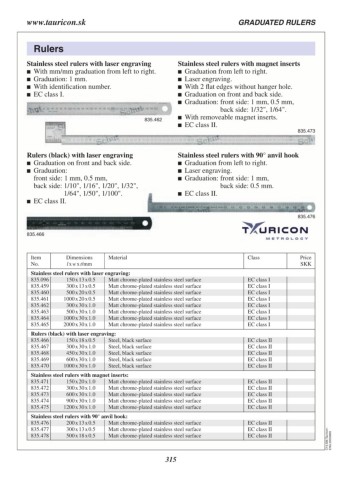

www.tauricon.sk GRADUATED RULERS
Stainless steel rulers with L → R or R → L numbering
Measuring range: 0 - 12 000 mm. Available on request:
Graduation: 1 mm (type B: 0.5 mm). – with graduation from top to bottom or from
Matt chrome-plated stainless steel surface.
Etched graduation. bottom to top,
EC class II (up to 4000 mm). – with different combinations (mm/mm,
Rulers from the main table with hanger hole.
mm/inch, mm/blanc, etc.),
– with 0-point in the middle.
– Thickness: from 300 mm: 1 mm,
from 500 mm: 2 mm.
835.124
835.266
Item No. Price Item No. Price Item No. Price Item No. Price Dimensions
SKK SKK SKK SKK l x w x t/mm
L → R type A: R → L type A: L → R type B: R → L type B: 150 x 13 x 0.5 835.355
835.120 835.121 835.421 835.422 200 x 13 x 0.5
835.122 835.123 835.298 835.440 250 x 13 x 0.5 Price
835.124 835.125 835.427 835.441 300 x 13 x 0.5 SKK
835.126 835.127 835.129 835.442 500 x 18 x 0.5
835.130 835.131 835.354 835.443 1000 x 18 x 0.5
835.132 835.133 835.252 835.444 1500 x 18 x 0.5
835.134 835.135 835.428 835.445 2000 x 18 x 0.5
835.136 835.137 835.429 835.446 2500 x 18 x 0.5
835.138 835.139 835.430 835.447 3000 x 18 x 0.5
835.140 835.141 835.431 835.448 3500 x 18 x 0.5
835.142 835.143 835.432 835.449 4000 x 18 x 0.5
835.144 835.145 835.433 835.450 5000 x 18 x 0.5
835.146 835.147 835.413 835.451 6000 x 18 x 0.5
835.148 835.149 835.434 835.452 7000 x 30 x 1
835.150 835.151 835.035 835.453 8000 x 30 x 1
835.152 835.153 835.435 835.454 9000 x 30 x 1
835.154 835.155 835.436 835.455 10000 x 30 x 1
835.156 835.157 835.437 835.456 11000 x 30 x 1
835.158 835.159 835.438 835.457 12000 x 30 x 1
835.160 835.161 835.439 835.458
Type A: mm / mm (bottom and top side 1 mm graduation).
Type B: 0.5 mm / 1 mm (top side 0.5 mm, bottom side 1 mm graduation).
Rulers with a self-adhesive back
Item No. Additional costs Price SKK With 0-point in the middle
835.165 For rulers Item No. Dimensions
up to 1000 mm (price per piece) l x w x t/mm
For rulers
from 1000 mm (price per meter) 835.266 200 x 13 x 0.5 C14.305.Tauricon-
ENG.20240422
The self-adhesive back is not separately available. Other sizes are also available.
315
