P. 294
www.tauricon.sk MICROSCOPES

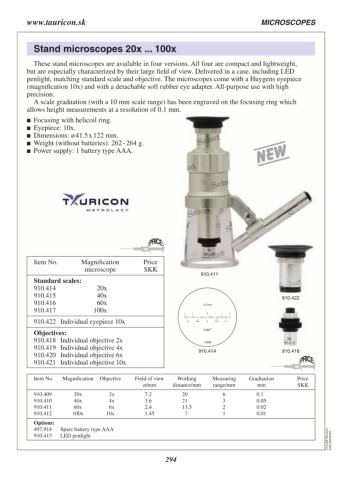

Stand microscopes 20x ... 100x
These stand microscopes are available in four versions. All four are compact and lightweight,
but are especially characterized by their large field of view. Delivered in a case, including LED
penlight, matching standard scale and objective. The microscopes come with a Huygens eyepiece
(magnification 10x) and with a detachable soft rubber eye adapter. All-purpose use with high
precision.
A scale graduation (with a 10 mm scale range) has been engraved on the focusing ring which
allows height measurements at a resolution of 0.1 mm.
Focusing with helicoil ring.
Eyepiece: 10x.
Dimensions: ø 41.5 x 122 mm.
Weight (without batteries): 262 - 264 g.
Power supply: 1 battery type AAA.
Item No. Magnification Price
microscope SKK
910.411
Standard scales: 20x 910.414 910.422
910.414 40x 910.418
910.415 60x
910.416 100x
910.417
910.422 Individual eyepiece 10x
Objectives:
910.418 Individual objective 2x
910.419 Individual objective 4x
910.420 Individual objective 6x
910.421 Individual objective 10x
Item No. Magnification Objective Field of view Working Measuring Graduation Price
SKK
ø/mm distance/mm range/mm mm
910.409 20x 2x 7.2 20 6 0.1
910.410 40x 4x 3.6 21 3 0.05
910.411 60x 6x 2.4 13.5 2 0.02
910.412 100x 10x 1.45 7 1 0.01
Options: Spare battery type AAA C13.328.Tauricon-
497.914 LED penlight ENG.20240422
910.413
294
