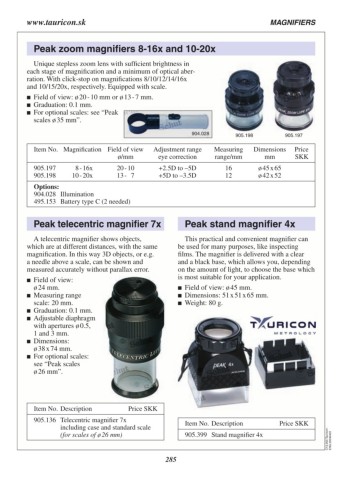

www.tauricon.sk MAGNIFIERS

Peak zoom magnifiers 8-16x and 10-20x

Unique stepless zoom lens with sufficient brightness in
each stage of magnification and a minimum of optical aber­
ration. With click‑stop on magnifications 8/10/12/14/16x
and 10/15/20x, respectively. Equipped with scale.
 Field of view: ø 20 - 10 mm or ø 13 - 7 mm.
 Graduation: 0.1 mm.
 For optional scales: see “Peak

scales ø 35 mm”.

904.028 905.198 905.197

Item No. Magnification Field of view Adjustment range Measuring Dimensions Price
ø/mm eye correction range/mm mm SKK

905.197 8 - 16x 20 - 10 +2.5D to –5D 16 ø 45 x 65
905.198 10 - 20x 13 - 7 +5D to –3.5D 12 ø 42 x 52
Options:
904.028 Illumination
495.153 Battery type C (2 needed)

Peak telecentric magnifier 7x Peak stand magnifier 4x

A telecentric magnifier shows objects, This practical and convenient magnifier can
which are at different distances, with the same be used for many purposes, like inspecting
magnification. In this way 3D objects, or e.g. films. The magnifier is delivered with a clear
a needle above a scale, can be shown and and a black base, which allows you, depending
measured accurately without parallax error. on the amount of light, to choose the base which
 Field of view: is most suitable for your application.
 Field of view: ø 45 mm.
ø 24 mm.  Dimensions: 51 x 51 x 65 mm.
 Measuring range  Weight: 80 g.

scale: 20 mm.
 Graduation: 0.1 mm.
 Adjustable diaphragm

with apertures ø 0.5,
1 and 3 mm.
 Dimensions:
ø 38 x 74 mm.
 For optional scales:
see “Peak scales
ø 26 mm”.

Item No. Description Price SKK

905.136 Telecentric magnifier 7x Item No. Description Price SKK
including case and standard scale 905.399 Stand magnifier 4x
(for scales of ø 26 mm) C13.203.Tauricon-
ENG.20240422

285
