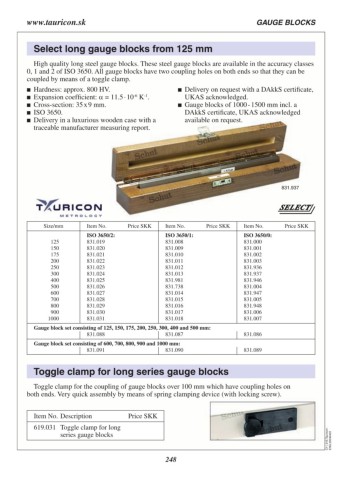

Page 248 - Schut Catalog

www.tauricon.sk GAUGE BLOCKS

Select long gauge blocks from 125 mm

High quality long steel gauge blocks. These steel gauge blocks are available in the accuracy classes
0, 1 and 2 of ISO 3650. All gauge blocks have two coupling holes on both ends so that they can be
coupled by means of a toggle clamp.

 Hardness: approx. 800 HV.  Delivery on request with a DAkkS certificate,
 Expansion coefficient: α = 11.5 · 10‑6 K‑1. UKAS acknowledged.
 Cross-section: 35 x 9 mm.
 ISO 3650.  Gauge blocks of 1000 - 1500 mm incl. a
 Delivery in a luxurious wooden case with a DAkkS certificate, UKAS acknowledged
available on request.
traceable manufacturer measuring report.

831.937

Size/mm Item No. Price SKK Item No. Price SKK Item No. Price SKK

125 ISO 3650/2: ISO 3650/1: ISO 3650/0:
150 831.019 831.008 831.000
175 831.020 831.009 831.001
200 831.021 831.010 831.002
250 831.022 831.011 831.003
300 831.023 831.012 831.936
400 831.024 831.013 831.937
500 831.025 831.981 831.946
600 831.026 831.738 831.004
700 831.027 831.014 831.947
800 831.028 831.015 831.005
900 831.029 831.016 831.948
1000 831.030 831.017 831.006
831.031 831.018 831.007

Gauge block set consisting of 125, 150, 175, 200, 250, 300, 400 and 500 mm: 831.086

831.088 831.087 831.089

Gauge block set consisting of 600, 700, 800, 900 and 1000 mm:

831.091 831.090

Toggle clamp for long series gauge blocks

Toggle clamp for the coupling of gauge blocks over 100 mm which have coupling holes on
both ends. Very quick assembly by means of spring clamping device (with locking screw).

Item No. Description Price SKK

619.031 Toggle clamp for long C11.315.Tauricon-
series gauge blocks ENG.20240422
