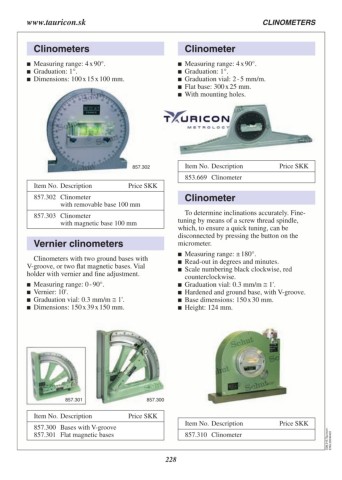

P. 228
www.tauricon.sk CLINOMETERS
Clinometers Clinometer
Measuring range: 4 x 90°. Measuring range: 4 x 90°.
Graduation: 1°. Graduation: 1°.
Dimensions: 100 x 15 x 100 mm. Graduation vial: 2 - 5 mm/m.
Flat base: 300 x 25 mm.
With mounting holes.
857.302 Item No. Description Price SKK
853.669 Clinometer
Item No. Description Price SKK
857.302 Clinometer Clinometer
with removable base 100 mm
To determine inclinations accurately. Fine-
857.303 Clinometer tuning by means of a screw thread spindle,
with magnetic base 100 mm which, to ensure a quick tuning, can be
disconnected by pressing the button on the
Vernier clinometers micrometer.
Measuring range: ± 180°.
Clinometers with two ground bases with Read-out in degrees and minutes.
V‑groove, or two flat magnetic bases. Vial Scale numbering black clockwise, red
holder with vernier and fine adjustment.
Measuring range: 0 - 90°. counterclockwise.
Vernier: 10'. Graduation vial: 0.3 mm/m ≅ 1'.
Graduation vial: 0.3 mm/m ≅ 1'. Hardened and ground base, with V‑groove.
Dimensions: 150 x 39 x 150 mm. Base dimensions: 150 x 30 mm.
Height: 124 mm.
857.301 857.300 Item No. Description Price SKK
857.310 Clinometer
Item No. Description Price SKK
857.300 Bases with V‑groove
857.301 Flat magnetic bases C08.215.Tauricon-
ENG.20240422
228
