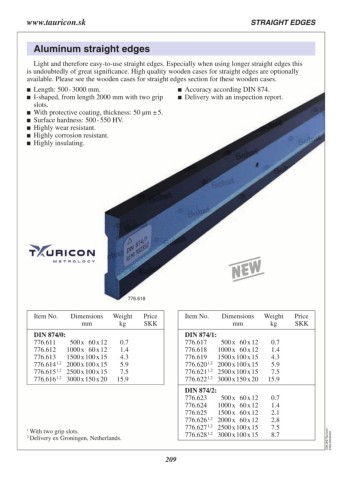

Page 209 - Schut Catalog

www.tauricon.sk STRAIGHT EDGES

Aluminum straight edges

Light and therefore easy-to-use straight edges. Especially when using longer straight edges this
is undoubtedly of great significance. High quality wooden cases for straight edges are optionally
available. Please see the wooden cases for straight edges section for these wooden cases.

 Length: 500 - 3000 mm.  Accuracy according DIN 874.
 I-shaped, from length 2000 mm with two grip  Delivery with an inspection report.

slots.
 With protective coating, thickness: 50 µm ± 5.
 Surface hardness: 500 - 550 HV.
 Highly wear resistant.
 Highly corrosion resistant.
 Highly insulating.

776.618

Item No. Dimensions Weight Price Item No. Dimensions Weight Price
mm kg SKK mm kg SKK

DIN 874/0: 0.7 DIN 874/1: 0.7
776.611 500 x 60 x 12 1.4 776.617 500 x 60 x 12 1.4
776.612 1000 x 60 x 12 4.3 776.618 1000 x 60 x 12 4.3
776.613 1500 x 100 x 15 5.9 776.619 1500 x 100 x 15 5.9
776.614 1,2 2000 x 100 x 15 7.5 776.620 1,2 2000 x 100 x 15 7.5
776.615 1,2 2500 x 100 x 15 15.9 776.621 1,2 2500 x 100 x 15 15.9
776.616 1,2 3000 x 150 x 20 776.622 1,2 3000 x 150 x 20

1 With two grip slots. DIN 874/2: 0.7 C09.309.Tauricon-
2 Delivery ex Groningen, Netherlands. 776.623 500 x 60 x 12 1.4 ENG.20240422
776.624 1000 x 60 x 12 2.1
776.625 1500 x 60 x 12 2.8
776.626 1,2 2000 x 60 x 12 7.5
776.627 1,2 2500 x 100 x 15 8.7
776.628 1,2 3000 x 100 x 15

209
