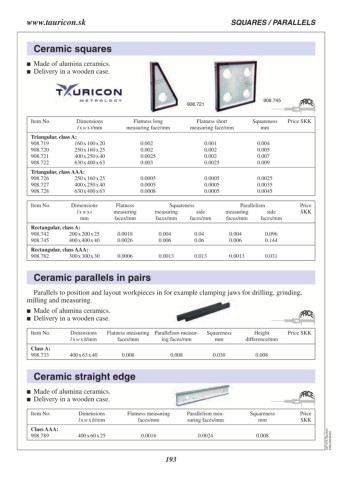

Page 193 - Schut Catalog
P. 193
www.tauricon.sk SQUARES / PARALLELS
Ceramic squares
Made of alumina ceramics.
Delivery in a wooden case.
908.721 908.745
Item No. Dimensions Flatness long Flatness short Squareness Price SKK
l x w x t/mm measuring face/mm measuring face/mm mm
Triangular, class A: 0.002 0.001 0.004
0.002 0.002 0.005
908.719 160 x 100 x 20 0.0025 0.002 0.007
0.003 0.0025 0.009
908.720 250 x 160 x 25
0.0005 0.0005 0.0025
908.721 400 x 250 x 40 0.0005 0.0005 0.0035
0.0008 0.0005 0.0045
908.722 630 x 400 x 63
Triangular, class AAA:
908.726 250 x 160 x 25
908.727 400 x 250 x 40
908.728 630 x 400 x 63
Item No. Dimensions Flatness Squareness Parallelism Price
l x w x t SKK
mm measuring measuring side measuring side
faces/mm faces/mm faces/mm faces/mm faces/mm
Rectangular, class A:
908.742 200 x 200 x 25 0.0018 0.004 0.04 0.004 0.096
0.0026 0.006 0.06 0.006 0.144
908.745 400 x 400 x 40
Rectangular, class AAA:
908.782 300 x 300 x 30 0.0006 0.0013 0.013 0.0013 0.031
Ceramic parallels in pairs
Parallels to position and layout workpieces in for example clamping jaws for drilling, grinding,
milling and measuring.
Made of alumina ceramics.
Delivery in a wooden case.
Item No. Dimensions Flatness measuring Parallelism measur- Squareness Height Price SKK
Class A: l x w x h/mm faces/mm ing faces/mm mm difference/mm
908.733
400 x 63 x 40 0.008 0.008 0.030 0.008
Ceramic straight edge
Made of alumina ceramics.
Delivery in a wooden case.
Item No. Dimensions Flatness measuring Parallelism mea- Squareness Price
l x w x h/mm faces/mm suring faces/mm mm SKK
Class AAA: 400 x 60 x 25 0.008 C07.315.Tauricon-
ENG.20240422
908.789 0.0016 0.0024
193
