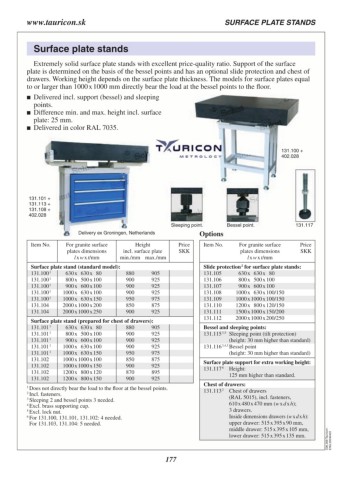

Page 177 - Schut Catalog
P. 177
www.tauricon.sk SURFACE PLATE STANDS
Surface plate stands
Extremely solid surface plate stands with excellent price-quality ratio. Support of the surface
plate is determined on the basis of the bessel points and has an optional slide protection and chest of
drawers. Working height depends on the surface plate thickness. The models for surface plates equal
to or larger than 1000 x 1000 mm directly bear the load at the bessel points to the floor.
Delivered incl. support (bessel) and sleeping
points.
Difference min. and max. height incl. surface
plate: 25 mm.
Delivered in color RAL 7035.
131.100 +
402.028
131.101 +
131.113 +
131.108 +
402.028
Sleeping point. Bessel point. 131.117
Delivery ex Groningen, Netherlands Options
Item No. For granite surface Height Price Item No. For granite surface Price
SKK plates dimensions SKK
plates dimensions incl. surface plate
l x w x t/mm
l x w x t/mm min./mm max./mm
Surface plate stand (standard model): 880 905 Slide protection 2 for surface plate stands:
131.100 1 630 x 630 x 80 900 925 131.105 630 x 630 x 80
131.100 1 800 x 500 x 100 900 925 131.106 800 x 500 x 100
131.100 1 900 x 600 x 100 900 925 131.107 900 x 600 x 100
131.100 1 1000 x 630 x 100 950 975 131.108 1000 x 630 x 100/150
131.100 1 1000 x 630 x 150 850 875 131.109 1000 x 1000 x 100/150
131.104 2000 x 1000 x 200 900 925 131.110 1200 x 800 x 120/150
131.104 2000 x 1000 x 250 131.111 1500 x 1000 x 150/200
131.112 2000 x 1000 x 200/250
Surface plate stand (prepared for chest of drawers):
Bessel and sleeping points:
131.101 1 630 x 630 x 80 880 905 131.115 3,5 Sleeping point (tilt protection)
131.101 1 800 x 500 x 100 900 925 (height: 30 mm higher than standard)
131.116 3,4,5 Bessel point
131.101 1 900 x 600 x 100 900 925
(height: 30 mm higher than standard)
131.101 1 1000 x 630 x 100 900 925
131.101 1 1000 x 630 x 150 950 975
131.102 1000 x 1000 x 100 850 875 Surface plate support for extra working height:
131.117 6 Height:
131.102 1000 x 1000 x 150 900 925
125 mm higher than standard.
131.102 1200 x 800 x 120 870 895
131.102 1200 x 800 x 150 900 925 Chest of drawers:
131.113 2 Chest of drawers
1 Does not directly bear the load to the floor at the bessel points.
2 Incl. fasteners. (RAL 5015), incl. fasteners,
3 Sleeping 2 and bessel points 3 needed. 610 x 480 x 470 mm (w x d x h);
4 Excl. brass supporting cup. 3 drawers.
5 Excl. lock nut. Inside dimensions drawers (w x d x h):
6 For 131.100, 131.101, 131.102: 4 needed. upper drawer: 515 x 395 x 90 mm,
For 131.103, 131.104: 5 needed. middle drawer: 515 x 395 x 105 mm,
lower drawer: 515 x 395 x 135 mm.
