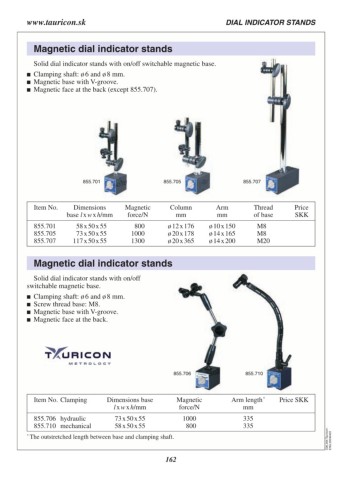

www.tauricon.sk DIAL INDICATOR STANDS
Magnetic dial indicator stands
Solid dial indicator stands with on/off switchable magnetic base.
Clamping shaft: ø 6 and ø 8 mm.
Magnetic base with V‑groove.
Magnetic face at the back (except 855.707).
855.701 855.705 855.707
Item No. Dimensions Magnetic Column Arm Thread Price
855.701 base l x w x h/mm force/N mm mm of base SKK
855.705 58 x 50 x 55 M8
855.707 73 x 50 x 55 800 ø 12 x 176 ø 10 x 150 M8
117 x 50 x 55 1000 ø 20 x 178 ø 14 x 165 M20
1300 ø 20 x 365 ø 14 x 200
Magnetic dial indicator stands
Solid dial indicator stands with on/off
switchable magnetic base.
Clamping shaft: ø 6 and ø 8 mm.
Screw thread base: M8.
Magnetic base with V‑groove.
Magnetic face at the back.
855.706 855.710
Item No. Clamping Dimensions base Magnetic Arm length * Price SKK
l x w x h/mm force/N mm
855.706 hydraulic 73 x 50 x 55 1000 335
855.710 mechanical 58 x 50 x 55 800 335
C06.204.Tauricon-
* The outstretched length between base and clamping shaft. ENG.20240422
