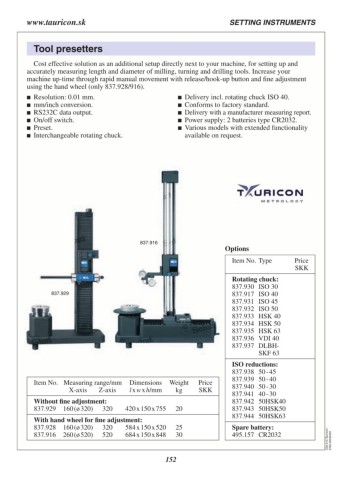

Page 152 - Schut Catalog
P. 152
www.tauricon.sk SETTING INSTRUMENTS
Tool presetters
Cost effective solution as an additional setup directly next to your machine, for setting up and
accurately measuring length and diameter of milling, turning and drilling tools. Increase your
machine up-time through rapid manual movement with release/hook-up button and fine adjustment
using the hand wheel (only 837.928/916).
Resolution: 0.01 mm. Delivery incl. rotating chuck ISO 40.
mm/inch conversion. Conforms to factory standard.
RS232C data output. Delivery with a manufacturer measuring report.
On/off switch. Power supply: 2 batteries type CR2032.
Preset. Various models with extended functionality
Interchangeable rotating chuck.
available on request.
837.916 Options
Item No. Type
Price
Rotating chuck: SKK
837.930 ISO 30
837.929 837.917 ISO 40
837.931 ISO 45
Item No. Measuring range/mm Dimensions Weight Price 837.932 ISO 50
X-axis Z-axis l x w x h/mm kg SKK 837.933 HSK 40
837.934 HSK 50
Without fine adjustment: 837.935 HSK 63 C04.313.Tauricon-
837.929 160 (ø 320) 320 420 x 150 x 755 20 837.936 VDI 40 ENG.20240422
With hand wheel for fine adjustment: 837.937 DLBH-
837.928 160 (ø 320) 320 584 x 150 x 520 25
837.916 260 (ø 520) 520 684 x 150 x 848 30 SKF 63
ISO reductions:
837.938 50 - 45
837.939 50 - 40
837.940 50 - 30
837.941 40 - 30
837.942 50HSK40
837.943 50HSK50
837.944 50HSK63
Spare battery:
495.157 CR2032
152
