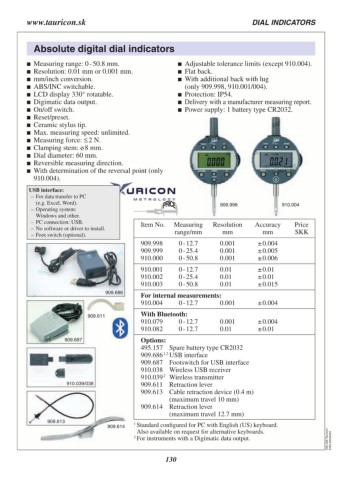

Page 130 - Schut Catalog

www.tauricon.sk DIAL INDICATORS

Absolute digital dial indicators

 Measuring range: 0 - 50.8 mm.  Adjustable tolerance limits (except 910.004).
 Resolution: 0.01 mm or 0.001 mm.  Flat back.
 mm/inch conversion.  With additional back with lug
 ABS/INC switchable.
 LCD display 330° rotatable. (only 909.998, 910.001/004).
 Digimatic data output.  Protection: IP54.
 On/off switch.  Delivery with a manufacturer measuring report.
 Reset/preset.  Power supply: 1 battery type CR2032.
 Ceramic stylus tip.
 Max. measuring speed: unlimited.
 Measuring force: ≤ 2 N.
 Clamping stem: ø 8 mm.
 Dial diameter: 60 mm.
 Reversible measuring direction.
 With determination of the reversal point (only

910.004).

USB interface: 909.998 910.004
– For data transfer to PC
Item No. Measuring Resolution Accuracy Price
(e.g. Excel, Word). range/mm mm mm SKK
– Operating system:

Windows and other.
– PC connection: USB.
– No software or driver to install.
– Foot switch (optional).

909.998 0 - 12.7 0.001 ± 0.004
909.999 0 - 25.4 0.001 ± 0.005
910.000 0 - 50.8 0.001 ± 0.006

910.001 0 - 12.7 0.01 ± 0.01
910.002 0 - 25.4 0.01 ± 0.01
910.003 0 - 50.8 0.01 ± 0.015
± 0.004
909.686 For internal measurements:
910.004 0 - 12.7 0.001

909.611 With Bluetooth: 0.001 ± 0.004
910.079 0 - 12.7 0.01 ± 0.01
910.082 0 - 12.7

909.687 909.614 Options:
910.039/038 495.157 Spare battery type CR2032
909.613 909.686 1,2 USB interface
909.687 Footswitch for USB interface
910.038 Wireless USB receiver C05.326.Tauricon-
910.039 2 Wireless transmitter ENG.20240422
909.611 Retraction lever
909.613 Cable retraction device (0.4 m)

(maximum travel 10 mm)
909.614 Retraction lever

(maximum travel 12.7 mm)
1 Standard configured for PC with English (US) keyboard.
Also available on request for alternative keyboards.
2 For instruments with a Digimatic data output.
