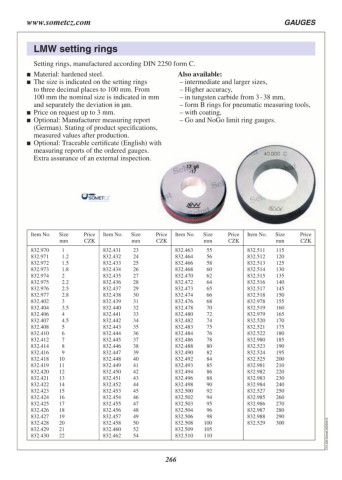

LMW setting rings

Setting rings, manufactured according DIN 2250 form C, 1 to 315 mm.

 DIN 2250 form C. Also available:
 Material: hardened steel. – Higher accuracy,
 The size is indicated on the setting rings – in tungsten carbide from 3 to 38 mm,
– form B rings for pneumatic measuring tools,
to three decimal places to 100 mm. From – intermediate and larger sizes,
100 mm the nominal size is indicated in mm – with coating,
and separately the deviation in μm. – Go and NoGo limit ring gauges.
 Price on request up to 3 mm.

Size Price Size Price Size Price Size Price Size Price
mm CZK mm CZK mm CZK mm CZK mm CZK

1 18 43 80 165
1.2 19 44 82 170
1.5 20 45 84 175
1.8 21 46 85 180
2 22 47 86 185
2.2 23 48 88 190
2.5 24 49 90 195
2.8 25 50 92 200
3 26 52 94 210
3.5 27 54 95 220
4 28 55 96 230
4.5 29 56 98 240
5 30 58 100 250
6 31 60 105 260
7 32 62 110 270
8 33 64 115 280
9 34 65 120 290
10 35 66 125 300
11 36 68 130 310
12 37 70 135 315
13 38 72 140
14 39 74 145 Intermediate
15 40 75 150 sizes over
16 41 76 155
17 42 78 160 3 mm are also
available

Measuring reports C12.205.Somet.20240422

For all gauges also measuring reports can be ordered.
 Manufacturer measuring report (German) per gauge. Stating of product specifications, measured

values after pro­duction, used traceable measuring devices, measuring inaccuracy and measuring
date. A favourable choice when your quality system does not require traceable certificates.
 Traceable certificate (Dutch) with mea­suring reports of the ordered gauges. Besides stating of the
measured values the extra assurance of an external inspection.
