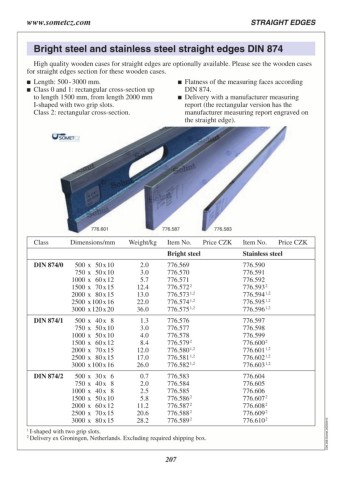

Page 207 - Schut Catalog
P. 207
www.sometcz.com STRAIGHT EDGES
Bright steel and stainless steel straight edges DIN 874
High quality wooden cases for straight edges are optionally available. Please see the wooden cases
for straight edges section for these wooden cases.
Length: 500 - 3000 mm. Flatness of the measuring faces according
Class 0 and 1: rectangular cross-section up DIN 874.
to length 1500 mm, from length 2000 mm Delivery with a manufacturer measuring
I‑shaped with two grip slots. report (the rectangular version has the
Class 2: rectangular cross-section. manufacturer measuring report engraved on
the straight edge).
776.601 776.587 776.583
Class Dimensions/mm Weight/kg Item No. Price CZK I tem No. Price CZK
Bright steel S tainless steel
7 76.569 7 76.590
7 76.570 776.591
DIN 874/0 500 x 50 x 10 2.0 7 76.571 776.592
750 x 50 x 10 3.0 776.572 776.593
1000 x 60 x 12 5.7 7 76.573 1,2 776.594 1,2
1500 x 70 x 15 12.4 7 76.574 1,2 7 76.595 1,2
2000 x 80 x 15 13.0 776.575 1,2 7 76.596 1,2
2500 x 100 x 16 22.0 7 76.576 7 76.597
3000 x 120 x 18 36.0 776.577 7 76.598
776.578 776.599
DIN 874/1 500 x 40 x 8 1.3 776.579 776.600
750 x 50 x 10 3.0 7 76.580 1,2 776.601 1,2
1000 x 50 x 10 4.0 7 76.581 1,2 7 76.602 1,2
1500 x 60 x 12 8.4 7 76.582 1,2 7 76.603 1,2
2000 x 70 x 15 12.0 7 76.583 7 76.604
2500 x 80 x 15 17.0 776.584 7 76.605
3000 x 100 x 16 26.0 776.585 7 76.606
776.586 7 76.607
DIN 874/2 500 x 30 x 6 0.7 7 76.587 2 7 76.608 2 C09.308.Somet.20240422
750 x 40 x 8 2.0 776.588 2 7 76.609 2
1000 x 40 x 8 2.5 776.589 2 7 76.610 2
1500 x 50 x 10 5.8
2000 x 60 x 12 11.2
2500 x 70 x 15 20.6
3000 x 80 x 15 28.2
1 I-shaped with two grip slots.
2 Delivery ex Groningen, Netherlands.
