P. 360
INSTRUMENT INTERFACE/DISPLAY www.promet.se

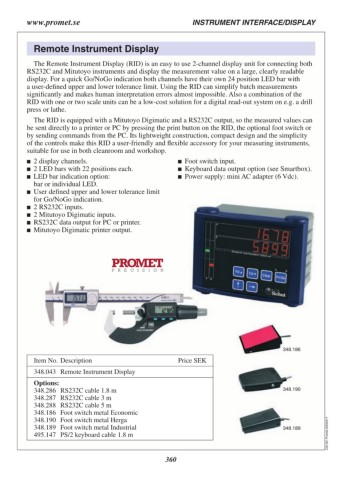

Remote Instrument Display
The Remote Instrument Display (RID) is an easy to use 2-channel display unit for connecting both
RS232C and Mitutoyo instruments and display the measurement value on a large, clearly readable
display. For a quick Go/NoGo indication both channels have their own 24 position LED bar with
a user‑defined upper and lower tolerance limit. Using the RID can simplify batch measurements
significantly and makes human interpretation errors almost impossible. Also a combination of the
RID with one or two scale units can be a low-cost solution for a digital read-out system on e.g. a drill
press or lathe.
The RID is equipped with a Mitutoyo Digimatic and a RS232C output, so the measured values can
be sent directly to a printer or PC by pressing the print button on the RID, the optional foot switch or
by sending commands from the PC. Its lightweight construction, compact design and the simplicity
of the controls make this RID a user-friendly and flexible accessory for your measuring instruments,
suitable for use in both cleanroom and workshop.
2 display channels. Foot switch input.
2 LED bars with 22 positions each. Keyboard data output option (see Smartbox).
LED bar indication option: Power supply: mini AC adapter (6 Vdc).
bar or individual LED.
User defined upper and lower tolerance limit
for Go/NoGo indication.
2 RS232C inputs.
2 Mitutoyo Digimatic inputs.
RS232C data output for PC or printer.
Mitutoyo Digimatic printer output.
Item No. Description Price SEK 348.186 C20.301.Promet.20240517
348.043 Remote Instrument Display 4,548.00 348.190
Options: 97.20 348.189
348.286 RS232C cable 1.8 m 208.80 Promet Precision 2023/2024-D
348.287 RS232C cable 3 m 237.60
348.288 RS232C cable 5 m 528.00
348.186 Foot switch metal Economic 876.00
348.190 Foot switch metal Herga 2,088.00
348.189 Foot switch metal Industrial 49.20
495.147 PS/2 keyboard cable 1.8 m
360
