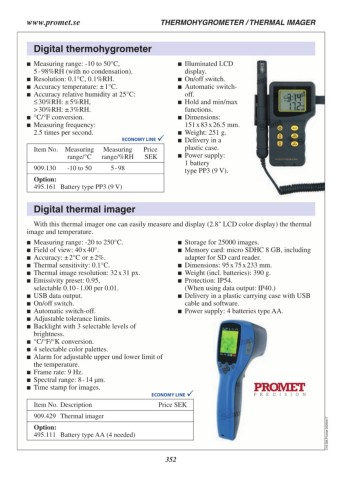

Page 352 - Schut Catalog

THERMOHYGROMETER / THERMAL IMAGER www.promet.se

Digital thermohygrometer  Illuminated LCD
display.
 Measuring range: -10 to 50°C,
5 - 98%RH (with no condensation).  On/off switch.
 Automatic switch-
 Resolution: 0.1°C, 0.1%RH.
 Accuracy temperature: ± 1°C. off.
 Accuracy relative humidity at 25°C:  Hold and min/max

≤ 30%RH: ± 5%RH, functions.
> 30%RH: ± 3%RH.  Dimensions:
 °C/°F conversion.
 Measuring frequency: 151 x 83 x 26.5 mm.
2.5 times per second.  Weight: 251 g.
 Delivery in a
Item No. Measuring Measuring Price
range/°C range/%RH SEK plastic case.
 Power supply:
909.130 -10 to 50 5 - 98 1,368.00
Option: 1 battery
495.161 Spare battery type PP3 (9 V) 30.00 type PP3 (9 V).

Digital thermal imager

With this thermal imager one can easily measure and display (2.8" LCD color display) the thermal
image and temperature.

 Measuring range: -20 to 250°C.  Storage for 25000 images.
 Field of view: 40 x 40°.  Memory card: micro SDHC 8 GB, including
 Accuracy: ± 2°C or ± 2%.
 Thermal sensitivity: 0.1°C. adapter for SD card reader.
 Thermal image resolution: 32 x 31 px.  Dimensions: 95 x 75 x 233 mm.
 Emissivity preset: 0.95,  Weight (incl. batteries): 390 g.
 Protection: IP54.
selectable 0.10 - 1.00 per 0.01.
 USB data output. (When using data output: IP40.)
 On/off switch.  Delivery in a plastic carrying case with USB
 Automatic switch-off.
 Adjustable tolerance limits. cable and software.
 Backlight with 3 selectable levels of  Power supply: 4 batteries type AA.

brightness.
 °C/°F/°K conversion.
 4 selectable color palettes.
 Alarm for adjustable upper und lower limit of

the temperature.
 Frame rate: 9 Hz.
 Spectral range: 8 - 14 µm.
 Time stamp for images.

Item No. Description Price SEK C18.306.Promet.20240517
909.429 Thermal imager 5,148.00
Option:
495.111 Spare battery type AA (4 needed) 8.40

© 2024, Schut Geometrische Meettechniek bv 352 Promet Precision 2023/2024-D
