THICKNESS GAUGES www.promet.se

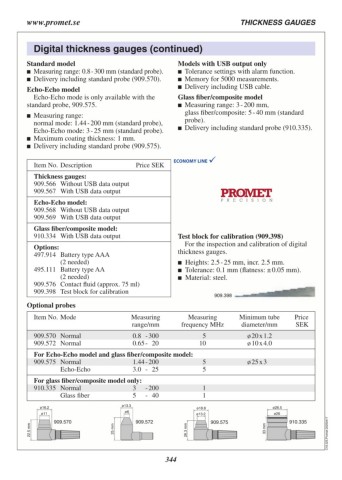

Digital thickness gauge
This thickness gauge measures in a non-destructive way the thickness and speed of sound from
several materials according to the ultrasonic measuring principle (as illustrated).
Measuring principle: ultrasonic. Operating temperature: 0 to 50°C.
Measuring range for steel: 1.2 - 200 mm. Admissible relative humidity: < 80%.
Resolution: 0.1 mm. Dimensions: 120 x 60 x 30 mm.
Accuracy: ± (0.5%H + 0.1 mm) Weight basic instrument: 260 g.
Delivery in a plastic case with a manufacturer
(H = measured value).
Measuring frequency: 5 MHz. measuring report.
Speed of sound: 1000 - 9000 m/s. Power supply: 4 batteries type AAA.
mm/inch conversion. Test block for calibration (909.398)
RS232C data output.
On/off switch. For the inspection and calibration of digital
Automatic switch-off. thickness gauges.
11 presets for the speed of sound of various Heights: 2.5 - 25 mm, incr. 2.5 mm.
Tolerance: 0.1 mm (flatness: ± 0.05 mm).
materials (cd01 - cd11) and one configurable Material: steel.
speed of sound (cd12).
Calibration standard on side of basic instrument.
measuring surface measuring principle Delivery including:
contact fluid measuring object – small, rectangular probe
ultrasonic
transmitter sound wave (measuring face ø 10 mm),
(probe) – contact fluid,
– manual,
AT A: transmitter – 4 batteries.
T: top echo
L L: lower echo
Preset code Material Item No. Description Price SEK
cd01 steel
cd02 cast iron 909.139 Thickness gauge 3,996.00
cd03 aluminum
cd04 copper (red copper) Options: 9.60
cd05 brass 497.914 Spare battery type AAA
cd06 zinc (4 needed)
cd07 quartz glass 909.075 RS232C cable and 1,200.00
cd08 polyethylene software
cd09 PVC 909.576 Contact fluid (approx. 75 ml) 171.60
cd10 gray cast iron 909.398 Test block for calibration 2,196.00
cd11 nodular/ductile cast iron C18.307.Promet.20240517
909.398
